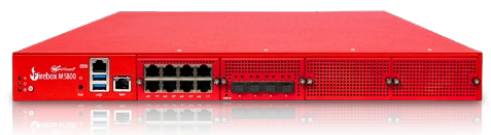

WatchGuard Firebox M5800
Up to 87 Gbps firewall throughput and 11.3 Gbps UTM throughput

WatchGuard Firebox M5800 Firewall


WatchGuard Products
WatchGuard Firebox M5800 with Basic Security SuiteBack to top
Includes: Appliances (Basic Security Suites include Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery, Dimension Command, and Access Portal)
WatchGuard Firebox M5800 with 1-yr Basic Security Suite
#WGM58031
List Price: $41,775.00
Our Price: $32,584.50
Call For Lowest Price!
WatchGuard Firebox M5800 with 3-yr Basic Security Suite
#WGM58033
List Price: $66,945.00
Our Price: $52,217.10
Call For Lowest Price!
WatchGuard Firebox M5800 with Total Security SuiteBack to top
Includes: Appliances (Total Security Suites include Gold Support, all Basic Security Suite services, APT Blocker, IntelligentAV, DNSWatch, 30 day storage in WG Cloud, and Threat Detection & Response)
WatchGuard Firebox M5800 with 1-yr Total Security Suite
#WGM58641
List Price: $58,695.00
Our Price: $45,782.10
Call For Lowest Price!
WatchGuard Firebox M5800 with 3-yr Total Security Suite
#WGM58643
List Price: $107,110.00
Our Price: $83,545.80
Call For Lowest Price!

More pricing below, click here!

WatchGuard Firebox M4800 & M5800 Overview:

TOP OF THE LINE PERFORMANCE & SECURITY

With firewall throughput of up to 87 Gbps and UTM throughput up to 11.3 Gbps, the Firebox® M4800 and M5800 are our fastest Firebox appliances ever. This level of performance, paired with powerful security, flexible high-port density, and affordability makes these the ideal solutions for distributed, hub-and-spoke type deployment scenarios.

TOTAL NETWORK PROTECTION

Every network needs a full arsenal of scanning engines to protect against spyware, viruses, malicious apps, botnets and more. Typically deployed at the corporate headquarters, Firebox M4800/M5800 appliances serve as the “hub,” responsible for managing and providing layered security for all communications between the head office and all remote employee and business sites.

A CLOUD’S-EYE VIEW OF YOUR ENTIRE NETWORK

WatchGuard Cloud provides full visibility into your network so that you can make timely, informed, and effective decisions about your network security anywhere, anytime. The platform displays 100+ dashboards and reports that allow you to quickly see high-level trends and anomalies, then drill down into detailed information on each.

EXPANSION MODULES FOR GREATER PORT DENSITY

Firebox M4800/M5800 appliances provide greater port density options that enable IT professionals to add additional network modules with more fiber or copper ports. Each appliance has two available slots for expansion modules, with options for 4 x 10 Gb fiber, 8 x 1 Gb copper, or 8 x 1 Gb fiber. Module options are identical to those on our mid-range Firebox devices, for even more flexibility.

AUTOMATION TO THE CORE

WatchGuard Firebox M Series appliances are designed with automation to the core, allowing your IT team to do more with less. The WatchGuard Automation Core makes it possible to deploy from the Cloud, block threats, update signatures, and detect and kill malware, all without lifting a finger.

FEATURES & BENEFITS

  • Up to 87 Gbps firewall throughput. Turn on all security scanning engines and still see an amazing 11.3 Gbps throughput.
  • All logging and reporting functions included with purchase, with over 100 dashboards and reports including PCI and HIPAA.
  • Customize your port configuration to meet current needs, knowing you have the flexibility to adapt as the network evolves. This is how to future-proof your network and eliminate costly ripand-replace scenarios.
  • Redundant hot-swap power supplies ensure maximum availability.
  • Access Portal is a clientless VPN solution that comes standard with every Firebox and provides secure remote access to remote users.

Specifications:

WatchGuard Firebox M4800 & M5800 Detailed Specs
Models:

Firebox M4800

Firebox M5800

Configuration: base + 4 x 10 Gb interfaces base + 4 x 10 Gb interfaces
THROUGHPUT
UTM (full scan) 5.2 Gbps 11.3 Gbps
Firewall (IMIX) 16.0 Gbps 25.0 Gbps
VPN (IMIX) 4.8 Gbps 5.2 Gbps
HTTPS (IPS enabled, full scan) 3.0 Gbps 4.9 Gbps
Antivirus 12.5 Gbps 22.0 Gbps
IPS (full scan) 8.1 Gbps 12.5 Gbps
Firewall (UDP 1518) 49.6 Gbps 87.0 Gbps
VPN (UDP 1518) 16.4 Gbps 18.8 Gbps
CAPACITY
Interfaces 10/100/1000 8 x 1 Gb 8 x 1 Gbps and 4X 10 Gb
I/O interfaces 1 serial/2 USB 1 serial/2 USB
Concurrent connections 15,000,000 30,800,000
Concurrent connections (proxy) 750,000 1,000,000
New connections per second 254,000 328,000
VLANs 1,000 Unrestricted
WSM licenses (incl) 9 9
TDR Host Sensors included 250 250
VPN TUNNELS
Branch Office VPN 5,000 Unlimited
Mobile VPN 10,000 Unlimited
SECURITY FEATURES
Firewall Stateful packet inspection, TLS decryption, proxy firewall
Application proxies HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3S, SMTPS, IMAPS and Explicit Proxy
Threat protection DoS attacks, fragmented & malformed packets, blended threats
Filtering options Browser Safe Search, Google for Business
VPN
Site to Site VPN IKEv2, IPSec, Policy and Route Based Tunnels, TLS hub and spoke
Remote Access VPN IKEv2, IPSec, L2TP, TLS
VISIBILITY
Logging and notifications WatchGuard Cloud & Dimension, Syslog, SNMP v2/v3
Reporting WatchGuard Cloud includes over 100 pre-defined reports, executive summary and visibility tools
CERTIFICATIONS
Security Pending: CC, FIPS
Safety NRTL / CB
Network IPv6 Ready Gold (routing)
Hazardous substance contro WEEE, RoHS, REACH
NETWORKING
SD-WAN Multi-wan failover, dynamic path selection, jitter/loss/ latency measurement
Dynamic Routing RIP, OSPF, BGP
High Availability Active/passive, active/active
QoS 802.1Q, DSCP, IP Precedence
Traffic Management By policy or application
IP address assignment Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT Static, dynamic, 1:1, IPSec traversal, policy-based
Link aggregation 802.3ad dynamic, static, active/backup
PHYSICAL AND POWER SPECIFICATIONS
Product Dimensions 17.2” x 1.73” x 12.6”
(438 x 44 x 320mm)
17” x 1.75” x 12.08”
(431 x 44 x 307 mm)
Shipping Dimension 22.0” x 21.3” x 5.1”
(560 x 540 x 130mm)
18” x 21” x 5.25”
(45.7 x 53.3 x 13.3 cm)
Shipping Weight 18.9 lbs (8.5Kgs) 17 lbs (7.7 Kgs)
Power Dual power supplies 300W 100-240VAC/5- 3A/50-60Hz Dual power supplies 400W 100-240VAC/6- 3A/47-63Hz
Power Consumption 130W 193W
Shipping Weight 38 lb (17 kg) 46 lb (21 kg)
Shipping Dimensions 588mm x 648 mm x 200mm (W x D x H) 788mm x 588mm x 215mm (W x D x H)
Product Weight 8 kg (17.63 lbs) 12 kg (26.45 lbs)
Product Dimensions 205mm L, 50.5mm W, 40mm H (8.1” L, 2” W, 1.6” H) 220mm L, 50.5mm W, 40mm H (8.7” L, 2” W, 1.6” H)
ENVIRONMENT OPERATING STORAGE
Temperature 32° F to 104° F
0° C to 40° C
40° F to 158° F
-10° C to 70° C
Relative Humidity 5% to 90% non-condensing 5% to 90% non-condensing
Altitude 0 to 9,843 ft at 95° F (3,000 m at 35° C) 0 to 15,000 ft at 95° F (4,570 m at 35° C)
MTBF M4800 63,983 hours @ 77° F (25° C)
MTBF M5800 86,999 hours @ 77° F (25° C)
MTBF Module 3,863,276 hours @ 77° F (25° C)

Documentation:

Download the WatchGuard Firebox M4800 & M5800 Datasheet (PDF).

Pricing Notes:

WatchGuard Products
WatchGuard Firebox M5800 with Basic Security SuiteBack to top
Includes: Appliances (Basic Security Suites include Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery, Dimension Command, and Access Portal)
WatchGuard Firebox M5800 with 1-yr Basic Security Suite
#WGM58031
List Price: $41,775.00
Our Price: $32,584.50
Call For Lowest Price!
WatchGuard Firebox M5800 with 3-yr Basic Security Suite
#WGM58033
List Price: $66,945.00
Our Price: $52,217.10
Call For Lowest Price!
WatchGuard Firebox M5800 with Total Security SuiteBack to top
Includes: Appliances (Total Security Suites include Gold Support, all Basic Security Suite services, APT Blocker, IntelligentAV, DNSWatch, 30 day storage in WG Cloud, and Threat Detection & Response)
WatchGuard Firebox M5800 with 1-yr Total Security Suite
#WGM58641
List Price: $58,695.00
Our Price: $45,782.10
Call For Lowest Price!
WatchGuard Firebox M5800 with 3-yr Total Security Suite
#WGM58643
List Price: $107,110.00
Our Price: $83,545.80
Call For Lowest Price!
WatchGuard Firebox M5800 with Standard SupportBack to top
Includes: Appliances with Support only (includes Support (24x7), VPN & Networking, Dimension Command, and Access Portal)
WatchGuard Firebox M5800 with 1-yr Standard Support
#WGM58001
List Price: $34,335.00
Our Price: $26,781.30
Call For Lowest Price!
WatchGuard Firebox M5800 with 3-yr Standard Support
#WGM58003
List Price: $43,515.00
Our Price: $33,941.70
Call For Lowest Price!
WatchGuard Firebox M5800 High Availability with Standard SupportBack to top
High Availability Appliances (Must be activated on an account with a non HA appliance of the same model)
WatchGuard Firebox M5800 High Availability with 1-yr Standard Support
#WGM58071
List Price: $17,165.00
Our Price: $13,388.70
WatchGuard Firebox M5800 High Availability with 3-yr Standard Support
#WGM58073
List Price: $26,300.00
Our Price: $20,514.00
Call For Lowest Price!
WatchGuard Firebox M5800 Trade Up Program - Basic Security SuiteBack to top
Trade Up to WatchGuard Firebox M5800 with 1-yr Basic Security Suite
#WGM58411
List Price: $33,190.00
Our Price: $25,888.20
Call For Lowest Price!
Trade Up to WatchGuard Firebox M5800 with 3-yr Basic Security Suite
#WGM58413
List Price: $58,340.00
Our Price: $45,505.20
Call For Lowest Price!
WatchGuard Firebox M5800 Trade Up Program - Total Security SuiteBack to top
Trade Up to WatchGuard Firebox M5800 with 1-yr Total Security Suite
#WGM58671
List Price: $50,115.00
Our Price: $39,089.70
Call For Lowest Price!
Trade Up to WatchGuard Firebox M5800 with 3-yr Total Security Suite
RED For RED Loyalty Trade-Up: May 30 – Jun 30, 2023
#WGM58673
List Price: $98,350.00
Our Price: $76,713.00
Special Price: $69,818.00
WatchGuard Basic Security Suite Renewal/UpgradeBack to top
Basic Security Software Suites include Standard Support (24x7), Application Control, WebBlocker, spamBlocker, Gateway Antivirus, Intrusion Prevention Service, Reputation Enabled Defense, and Network Discovery
WatchGuard Basic Security Suite Renewal/Upgrade 1-yr for Firebox M5800
#WGM58331
Our Price: $17,965.00
Call For Lowest Price!
WatchGuard Basic Security Suite Renewal/Upgrade 3-yr for Firebox M5800
#WGM58333
Our Price: $43,110.00
Call For Lowest Price!
WatchGuard Total Security Suite Renewal/UpgradeBack to top
Total Security Software Suites include Gold Support, Basic Security Suite, APT Blocker, Data Loss Prevention, Dimension Command, Access Portal, DNSWatch, IntelligentAV, Cloud, and Threat Detection & Response
WatchGuard Total Security Suite Renewal/Upgrade 1-yr for Firebox M5800
#WGM58351
Our Price: $34,455.00
Call For Lowest Price!
WatchGuard Total Security Suite Renewal/Upgrade 3-yr for Firebox M5800
#WGM58353
Our Price: $82,695.00
Call For Lowest Price!
WatchGuard APT BlockerBack to top
WatchGuard APT Blocker 1-yr for Firebox M5800
#WGM58171
Our Price: $9,305.00
WatchGuard APT Blocker 3-yr for Firebox M5800
#WGM58173
Our Price: $22,335.00
Call For Lowest Price!
WatchGuard Standard Support RenewalBack to top
WatchGuard Standard Support Renewal 1-yr for Firebox M5800
#WGM58201
Our Price: $6,525.00
WatchGuard Standard Support Renewal 3-yr for Firebox M5800
#WGM58203
Our Price: $15,655.00
Call For Lowest Price!
WatchGuard Gold Support Renewal/UpgradeBack to top
WatchGuard Gold Support Renewal/Upgrade 1-yr for Firebox M5800
#WGM58221
Our Price: $9,370.00
WatchGuard Gold Support Renewal/Upgrade 3-yr for Firebox M5800
#WGM58223
Our Price: $22,495.00
Call For Lowest Price!
WatchGuard Premium 4 hours ReplacementBack to top
WatchGuard Premium 4hr Replacement 1-yr for Firebox M5800
#WGM58801
Our Price: $4,580.00
WatchGuard Premium 4hr Replacement 3-yr for Firebox M5800
#WGM58803
Our Price: $10,990.00
AccessoriesBack to top
WatchGuard Firebox M5800 Hot Swap Power Supply
#WG9013
List Price: $995.00
Our Price: $776.10
Firebox M 8 Port 1Gb Copper Module
#WG8592
List Price: $995.00
Our Price: $776.10
Firebox M 8 Port 1Gb SFP Fiber Module
#WG8593
List Price: $1,195.00
Our Price: $932.10
Firebox M 4 Port 10Gb SFP+ Fiber Module
#WG8594
List Price: $1,395.00
Our Price: $1,088.10
WatchGuard Firebox M 2 Port 40Gb QSFP+ Fiber Module
#WG8023
List Price: $3,950.00
Our Price: $3,081.00
Transceiver 10Gb Short-Range SFP+ for WatchGuard Firebox M
#WG8583
Our Price: $350.00
Transceiver 1Gb Short-Range SFP for Firebox M
#WG8585
Our Price: $120.00
Transceiver 40Gb Short-Range QSFP+ for WatchGuard Firebox M
#WG8022
Our Price: $695.00
Cable Kit for Firebox M
#WG8587
Our Price: $20.00
Firebox Rack Rails Kit
Rack Rails Kit for: WatchGuard Firebox M5600/M270/M370/M470/M570/M670
#WG8596
Our Price: $125.00
