WatchGuard AP230W
2x2:2 OFDMA Wall Plate Wi-Fi 6 Access Point

Confined Environments and Network Expansion
The AP230W enables support for confined spaces with lightning fast speed. Designed for indoor wall mount deployments, the AP230W delivers superior Wi-Fi 6 performance across distributed environments and is ideal for building easily scalable networks.

Cloud-Based Management
You can manage the AP230W with WatchGuard Cloud. WatchGuard Cloud delivers simplified Wi-Fi management to easily deploy, configure, and report on one unified platform for security. It eliminates the need for any physical or virtual infrastructure requirements, with multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform. WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.

Cross-Platform Benefits

• Simple VPN connectivity to a Firebox managed in WatchGuard Cloud.
• Multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform with enhanced activation and intelligent inventory management.
• Captive Portal creation with custom corporate branding such as company logos, background, and thumbnail images.
• Enterprise authentication is delivered through easily managed WatchGuard Authentication Domains.
• Centralized management for WatchGuard’s portfolio of products such as AuthPoint, Firebox, and endpoint solutions.

Features & Benefits

• Wi-Fi 6 and WPA3 encryption


• Includes a 2x2 radio optimized for Wi-Fi 6 with three internal antennas


• A dual-band scanning radio for airspace monitoring


• Maximum Tx power delivers 23 dBm and a 3 dBi antenna gain

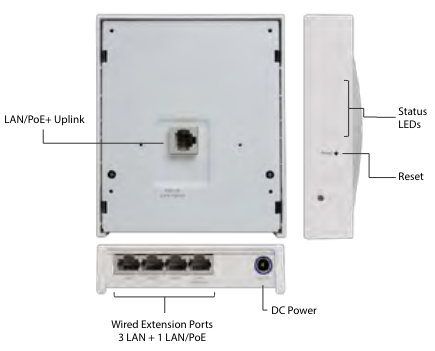

• Five 1 Gbps ports supporting one interface for uplink with PoE+ and four interfaces for wired extension


• Max Data rate up to 1.2 Gbps on the 5 GHz band


• Max Data rate up to 574 Mbps available on the 2.4 GHz band


• Qualcomm(R) Cypress IPQ6010 Quad-core A53 ARM process at 1.8 GHz with 1 GB RAM and 256 MB Flash

From indoor remote workspaces or a small office to rugged, expansive outdoor environments - WatchGuard has a range of Wi-Fi 6 access points to fit every wireless need. WatchGuard’s Wi-Fi management license options enable capabilities that support the business needs being faced today and offer the flexibility to evolve alongside the wireless needs of tomorrow.

MANAGEMENT LICENSE OPTIONS
FEATURE DESCRIPTION	STANDARD WI-FI	UNIFIED SECURITY PLATFORM WI-FI
Native WatchGuard Cloud Management Features
24/7 Support and Hardware Warranty
Inventory Management
SSH/CLI Access
Configuration of Radio Settings
Configuration of SSID
Configuration of Device Settings
Firmware Updated
24-Hour Reporting/Visibility
Live Status Visibility
WatchGuard Cloud API Integration for PSA
AP Site Templating
Captive Portal
Network Access Enforcement	-
Syslog Server Output	-
IKEv2 VPN Features (RAP)	-
30-Day Reporting/Visibility	-
Future WatchGuard Portfolio Integrations	-
Future Security and Wi-Fi Features *	-

*Features included in the Unified Security Platform license will be determined by WatchGuard. Some features may require additional products from WatchGuard to work.
