WatchGuard AP332CR Rugged Access Point
Ideal For Mid-Density Outdoor/Rugged Deployments

WatchGuard Access Point Overview:

IP67-rated enclosure, 2x2 OFDMA, 802.11ax support, One 2.5 GbE port, Four external antennas, PoE+ power

WatchGuard’s mid-performance Wi-Fi 6 access point is the ideal choice for mid-density outdoor/rugged environments of all shapes and sizes. It delivers secure WPA3 encryption for a fast, safe, seamless Wi-Fi 6 experience.

Ideal For Mid-Density Outdoor/Rugged Deployments

The AP332CR delivers superior Wi-Fi 6 performance and WPA3 encrypted security across distributed networks and is ideal for building an easily scalable network in rugged or outdoor deployment conditions.

Cloud Based Management

You can manage the AP332CR with WatchGuard Cloud.

WatchGuard Cloud delivers one simplified platform for Wi-Fi management to easily deploy, configure, and report on one unified platform. WatchGuard Cloud eliminates the need for any physical or virtual infrastructure requirements.

WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.

Cross Platform Benefits

• Simple VPN connectivity to Fireboxes managed in WatchGuard Cloud.
• Multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform with enhanced activation and intelligent inventory management.
• Captive Portal creation with custom corporate branding, such as company logos, background, and thumbnail images.
• Enterprise authentication is delivered through easily managed WatchGuard Authentication domains.
• Centralized management to WatchGuard’s portfolio of products including AuthPoint, Firebox, and endpoint solutions. IP67-rated enclosure, 2x2 OFDMA, 802.11ax support, One 2.5 GbE port, Four external antennas, PoE+ power WatchGuard’s mid-performance Wi-Fi 6 access point is the ideal choice for mid-density outdoor/rugged environments of all shapes and sizes. It delivers secure WPA3 encryption for a fast, safe, seamless Wi-Fi 6 experience.

Add Wi-Fi 6 to Every Space

Wi-Fi is essential to stay connected, working, playing, and managing IoT devices. WatchGuard's Wi-Fi 6 access points deliver exceptional performance with an easy way to benefit from the security across many use cases such as remote work, retail experiences, and expansive campuses. WatchGuard’s AP332CR is perfect for mid-density deployments and is ideal for indoor or rugged outdoor deployment with superior Wi-Fi 6 performance and security.

End-to-End Management Features

Ensure a comprehensive view of crucial reporting such as signal strength, bandwidth consumption, and distribution. Captive portals deliver excellent end-user experiences while keeping them secure. Manage multi-tier and multi-tenant ecosystems by reducing the complexity of managing multiple services. Efficiently deploy, configure, and report Wi-Fi connectivity for every user with deep cross-platform integration to WatchGuard's portfolio of products.

Powerful Wireless Experience

WatchGuard’s Wi-Fi 6 access points include a complete and powerful wireless feature set delivered by a zero-touch deployment experience. Utilizing secure WPA3 encryption, the AP332CR is perfect for mid-density indoor and outdoor environments that include commercial retail, K-12 schools, offices and everything in between that requires reliable performance and dedicated security. Lightning-fast connectivity with integrated security, centralized management, intelligent reporting, and deep visibility into wireless ecosystems to stay focused on what matters.

Features and Benefits:

• Wi-Fi 6 and WPA3 encryption

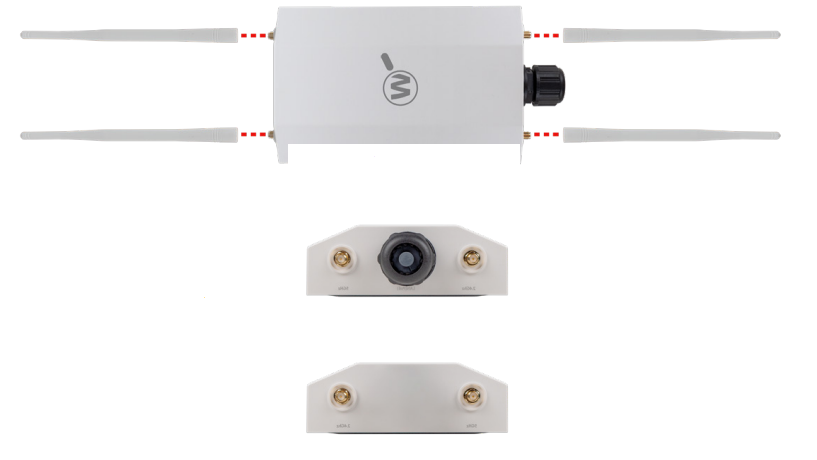

• Includes a 2x2 radio with four omnidirectional, external SMAtype antennas
• Maximum TX power delivers 23 dBm and 5 dBi antenna gain
• IP67-rated sealed enclosure to protect from harsh environments
• One PoE+ port supporting up to 2.5 Gbps
• Max Data rate up to 1.2 Gbps on the 5 GHz band
• Max Data rate up to 547 Mbps available on the 2.4 GHz band

Wi-Fi Package Options:

These APs come with powerful Wi-Fi 6 access point management in WatchGuard Cloud, a single management solution for WatchGuard’s full portfolio of products including Endpoint Security, AuthPoint MFA, Firebox appliances and Wi-Fi. It's optimal for designing new wireless ecosystems or replacing existing wireless networks with the latest Wi-Fi 6 technology and secure WPA3 encryption technology.

---

Specifications:

Access Points	AP332CR
Hardware Details
Physical Dimensions	190 mm x 124 mm x 52.5 mm (7.48 in x 4.07 in x 2.07 in)
Weight	4.07 kg (8.972 lb)
Operating Temperature	-20˚C to 60˚C (-4˚F to 140˚F)
Operating Humidity	-5% to 90% non-condensing
Power Consumption	15.9 W (max) / 11.65 W (avg)
Chipset and RAM	Qualcomm IPQ6010-0 4-core A53 @ 1.8 GHz Flash: SPI 8 MB NAND: 256 MB RAM: DDR3L 1 GB

OPERATIONAL SPECIFICATIONS
Input Power	802.3at (PoE+)
Number of Radios	2 Wi-Fi Radios: One 2.4 GHz and 5 GHz radio each for simultaneous dual band client access
MIMO	2x2 for 2.4/5 GHz Radios
Number of Spatial Streams	2 for 2.4/5 GHz Radios
RF Transmit Power	22 dBm per radio chain (max); Actual power for Tx will depend on Country Regulatory Domain
Simultaneous MU-MIMO Clients	4
Users in a MU-MIMO group with a 2x2 client	2
Bandwidth Agility	Yes
Dynamic Frequency Selection	Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certifications

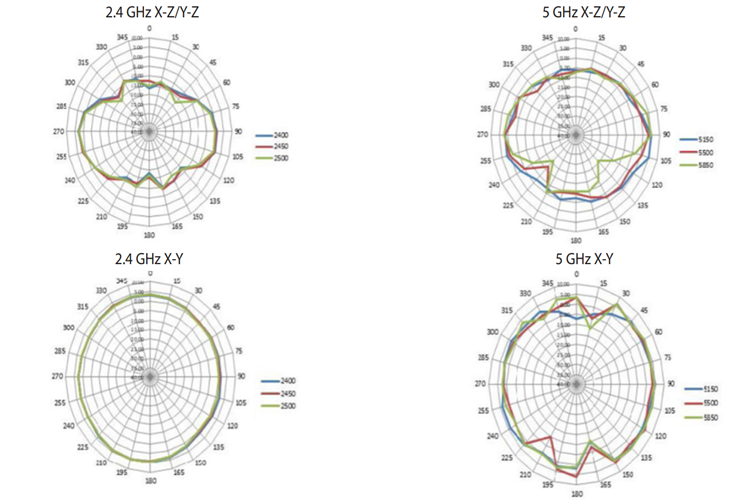

Signal Coverage Patterns:

2.4 GHz and 5 GH

Documentation:

Download the WatchGuard Access Point 332CR Datasheet (PDF).
