WatchGuard AP430CR
Ideal Wi-Fi 6 solution to support rugged or outdoor environments, Managed in WatchGuard Cloud


WatchGuard AP430CR

WatchGuard Products
WatchGuard AP430CR

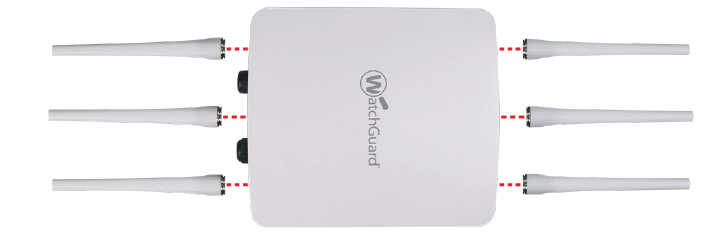

WatchGuard AP430CR Access Point - IP67 Rated 4x4 OFDMA, Wi-Fi 6 (802.11ax), 6 external antennas (sold seperately), WatchGuard Cloud Ready
WatchGuard’s AP130, AP330, AP430CR, and AP432 requires an active Management License. Select from a Standard or USP Management License to activate and access WatchGuard Cloud. The Management License is required to activate and manage the WatchGuard access points.
#WGA43000000
List Price: $1,369.00
Our Price: $1,067.82
WatchGuard Standard Wi-Fi Management License
WatchGuard Standard Wi-Fi Management License 5-yr
#WGWSM00605
List Price: $225.00
Our Price: $175.50
WatchGuard Standard Wi-Fi Management License 3-yr
#WGWSM00603
List Price: $150.00
Our Price: $117.00
WatchGuard Standard Wi-Fi Management License 1-yr
#WGWSM00601
List Price: $75.00
Our Price: $58.50
WatchGuard USP Wi-Fi Management License
WatchGuard USP Wi-Fi Management License 5-yr
#WGWUM22005
Our Price: $375.00
WatchGuard USP Wi-Fi Management License 3-yr
#WGWUM22003
Our Price: $250.00
WatchGuard USP Wi-Fi Management License 1-yr
#WGWUM22001
Our Price: $125.00

More pricing below, click here!

Live Demo Box, Click here!

Overview:

The AP 430 CR is perfect for high-density deployments that include an industrial-rated IP67 enclosure, designed for either indoor or rugged outdoor deployment with superior Wi-Fi 6 performance and secure WPA3 encryption. Includes six external antennas to deliver a maximum TX power of 23dBm. One ethernet port is included to support up to 5 Gbps and includes one gigabit PoE+ port. Lightning-fast speed crafts an unwavering connectivity executed through a total of 2402 Mbps the 5 GHz band and 574 Mbps delivered on the 2.4 GHz band. Integrated 4x4 radio chains and streams to deliver a secure and seamless network experience.


Perfect For High-Density Deployment
Designed for indoor or rugged outdoor deployment conditions built with an industrial-rated IP67 enclosure. The AP430CR delivers superior Wi-Fi 6 performance and WPA3 encrypted security. Includes six external antennas to deliver a maximum TX power of 23 dBm. Hardware includes one Ethernet port that supports up to 5 Gbps and a gigabit PoE+ port.

Cloud-Based Management
You can manage the AP430CR with WatchGuard Cloud.WatchGuard Cloud delivers one simplified platform for Wi-Fi management to easily deploy, configure, and report on one unified security platform. WatchGuard Cloud eliminates the need for any physical or virtual infrastructure requirements.WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.

Cross-Platform Benefits

  • Simple VPN connectivity to a Firebox managed in WatchGuard Cloud.
  • Multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform with enhanced activation and intelligent inventory management.
  • Captive Portal creation with custom corporate branding such as company logos, background, and thumbnail images.
  • Enterprise authentication is delivered through easily managed WatchGuard Authentication Domains.
  • Centralized management for WatchGuard’s portfolio of products such as AuthPoint, Firebox, and endpoint solutions.

Features & Benefits

  • Wi-Fi 6 and WPA3 encryption

  • Six N-Type external connectors offer a variety of external antenna choices for flexible pattern coverage capabilities (antennas sold separately)

  • The IP67 sealed enclosure provides protection in harsh weather conditions or rugged environments and can be mounted with direct exposure to the elements – no overhang or shelter required

  • Support for up to eight individual SSIDs per radio allows for maximum flexibility in network design

  • Lightning-fast speed crafts an unwavering connectivity experience executed by 2402 Mbps on the 5 GHz band and 574 Mbps delivered on the 2.4 GHz band

Wi-Fi Package Options:


WatchGuard Wi-Fi Package Options

These APs come with powerful Wi-Fi 6 access point management in WatchGuard Cloud, a single management solution for WatchGuard’s full portfolio of products including Endpoint Security, AuthPoint MFA, Firebox appliances and Wi-Fi. It's optimal for designing new wireless ecosystems or replacing existing wireless networks with the latest Wi-Fi 6 technology and secure WPA3 encryption technology.

STANDARD WI-FI

A standard license for Wi-Fi in WatchGuard Cloud offers basic Cloud management features including 24-hour reporting, comprehensive 24/7 support, diagnostics, inventory management and beyond.

UNIFIED SECURITY PLATFORM™ (USP) WI-FI

WatchGuard USP licenses for Wi-Fi in WatchGuard Cloud offer everything included in standard licenses plus 30 days of reporting, VPN configuration, advanced PSA integration and much more.

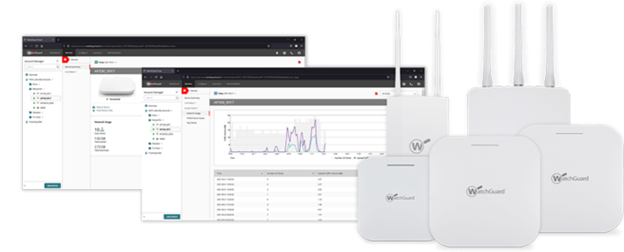

From indoor remote workspaces or a small office to rugged, expansive outdoor environments - WatchGuard has a range of Wi-Fi 6 access points to fit every wireless need. WatchGuard’s Wi-Fi management license options enable capabilities that support the business needs being faced today and offer the flexibility to evolve alongside the wireless needs of tomorrow.

MANAGEMENT LICENSE OPTIONS
FEATURE DESCRIPTION STANDARD WI-FI UNIFIED SECURITY PLATFORM WI-FI
Native WatchGuard Cloud Management Features
24/7 Support and Hardware Warranty
Inventory Management

SSH/CLI Access

Configuration of Radio Settings

Configuration of SSID
Configuration of Device Settings
Firmware Updated
24-Hour Reporting/Visibility
Live Status Visibility
WatchGuard Cloud API Integration for PSA
AP Site Templating
Syslog Server Output -
IKEv2 VPN Features (RAP) -
Captive Portal -
30-Day Reporting/Visibility -
Future WatchGuard Portfolio Integrations -
Future Security and Wi-Fi Features * -

*Features included in the Unified Security Platform license will be determined by WatchGuard. Some features may require additional products from WatchGuard to work.

About WatchGuard Technologies, Inc.

WatchGuard® Technologies, Inc. is a global leader in network security, endpoint security, secure Wi-Fi, multifactor authentication, and network intelligence. The company’s awardwinning products and services are trusted around the world by more than18,000 security resellers and service providers to protect more than 250,000 customers.

WatchGuard’s mission is to make enterprise-grade security accessible to companies of all types and sizes through simplicity, making WatchGuard an ideal solution for midmarket businesses and distributed enterprises. The company is headquartered in Seattle, Washington, with offices throughout North America, Europe, Asia Pacific, and Latin America.


WatchGuard AP430CR


WatchGuard AP430CR

Specifications:

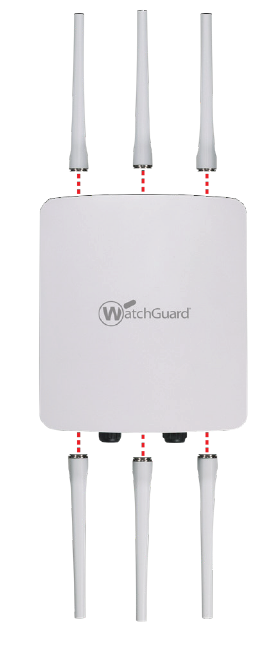

Front

AP430CR Front

Back

AP430 Bottom
AP430CR Specifications
Physical Specifications
Property Specification
Physical Dimensions 267.1 mm x 217.65 mm x 53.7 mm (without antenna)
Weight 1.759 kg (3.87 lb)
Operating Temperature -30˚C to 60˚C (-22˚F to 140˚F)
Storage Temperature -40˚C to 85˚C (-40˚F to 185˚F)
Humidity 5% to 95% non-condensing
Power Consumption 19 W (max) / 11 W (min) / 16 W (avg)
Chipset Qualcomm Iron QCN5124-1 + Iron QCN5154-1
Processor RAM Qualcomm® Hawkeye IPQ8071A-1 Quad-core A53s at 1.0 GH
Port Description Connector Type Speed/Protocol
LAN / PoE+ Multi gigabit ethernet port that enables the device to connect to the wired LAN and communicate with WatchGuard Cloud. This port is also used to power the device using the 802.3at Power over Ethernet Plus (PoE+) standard. IP67 rated weather- proof RJ-45 1/2.5/5 Gbps Gigabit Ethernet 802.3at PoE+
LAN2 Gigabit Ethernet port that can be used for wired extension for an SSID IP67 rated weather- proof RJ-45 10/100/1000 Mbps Gigabit Ethernet
Wi-Fi Specifications – Frequency, Modulation, and Data Rates
IEEE 802.11b/g/n/ax
Frequency Band Scanning Transmission
All regions USA & Canada
(FCC/IC)
Europe
(ETSI)
2400 ~ 2472 MHz 2400 ~ 2462 MHz 2400 ~ 2472 MHz
Modulation Type DSSS, OFDM, OFDMA
Peak Data Rates Up to 574 Mbps (MCS0-11) with automatic rate adaptation
IEEE 802.11a/n/ac/ax
Frequency Band Scanning Transmission
All regions USA & Canada
(FCC/IC)
Europe
(ETSI)
5.15 ~ 5.85 MHz 5.15 ~ 5.85 MHz 5.15 ~ 5.72 MHz
Dynamic Frequency Selection DFS and DFS2
Modulation Type OFDM, ODFMA
Peak Data Rates Up to 2402 Mbps (MCS 0-11) with automatic rate adaptation
Maximum Power Values
Maximum Transmit Power 24 dBm
Receive Sensitivity -93 dBm
Regulatory Specifications
Country RF and Electromagnetic Certification Safety
USA FCC UL
Canada IC cUL
Europe CE EN EN, RoHS

Documentation:

Download the WatchGuard AP430CR Access Point Datasheet (PDF).
