WatchGuard AP432
4*4 OFDMA, Wi-Fi6 (802.11ax), 8 internal antennas, WatchGuard Cloud Ready

WatchGuard AP432 Indoor Access Point

WatchGuard Products
WatchGuard AP432
WatchGuard AP432 Access Point 4*4 OFDMA, Wi-Fi6 (802.11ax), 8 internal antennas, WatchGuard Cloud Ready
WatchGuard’s AP130, AP330, AP430CR, and AP432 requires an active Management License. Select from a Standard or USP Management License to activate and access WatchGuard Cloud. The Management License is required to activate and manage the WatchGuard access points.
#WGA43200000
List Price: $755.00
Our Price: $588.90
WatchGuard Standard Wi-Fi Management License
WatchGuard Standard Wi-Fi Management License 5-yr
#WGWSM00605
List Price: $225.00
Our Price: $175.50
WatchGuard Standard Wi-Fi Management License 3-yr
#WGWSM00603
List Price: $150.00
Our Price: $117.00
WatchGuard Standard Wi-Fi Management License 1-yr
#WGWSM00601
List Price: $75.00
Our Price: $58.50
WatchGuard USP Wi-Fi Management License
WatchGuard USP Wi-Fi Management License 5-yr
#WGWUM22005
Our Price: $375.00
WatchGuard USP Wi-Fi Management License 3-yr
#WGWUM22003
Our Price: $250.00
WatchGuard USP Wi-Fi Management License 1-yr
#WGWUM22001
Our Price: $125.00

More pricing below, click here!

Live Demo Box, Click here!

WatchGuard AP432 Overview:

Robust Wireless for High-Density Indoor Deployments

WatchGuard’s high-performance Wi-Fi 6 access point is the ideal choice for high-density indoor environments of all shapes and sizes to utilize the most secure WPA3 encryption for a seamless Wi-Fi 6 experience for end users to enjoy.


Perfect For High-Range Density And Growing Networks
The AP432 enables high-traffic areas to be supported with lightning-fast speed. Designed for indoor mid-range density, the AP432 delivers superior Wi-Fi 6 performance across distributed networks and is perfect for building a network that is easily scalable.


Cloud-Based Management
You can manage the AP432 with WatchGuard Cloud.
WatchGuard Cloud delivers one simplified platform for Wi-Fi management to easily deploy, configure, and report on one unified security platform. WatchGuard Cloud eliminates the need for any physical or virtual infrastructure requirements, with multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform.
WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.


Cross-Platform Benefits

  • Simple VPN connectivity to a Firebox managed in WatchGuard Cloud.
  • Multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform with enhanced activation and intelligent inventory management.
  • Captive Portal creation with custom corporate branding such as company logos, background, and thumbnail image.
  • Enterprise authentication is delivered through easily managed WatchGuard Authentication Domains.
  • Centralized management to WatchGuard’s portfolio of products such as AuthPoint, Firebox appliances, and endpoint solutions.

Features & Benefits

  • Wi-Fi 6 and WPA3 encryption
  • Includes 4x4 radio optimized for Wi-Fi 6 with eight omnidirectional internal antennas
  • Maximum TX power delivers 23 dBm and a 3 dBi antenna gain
  • One PoE+ port supporting up to 2.5 Gbps
  • Max data rate up to 1148 Mbps available on the 2.4 GHz band
  • Max data rate up to 2.4 Gbps available on the 5 GHz band
  • Qualcomm® Cypress IPQ8072A Quad-core A53 ARM processor at 2 GHz with 2 GB RAM and 256 MB Flash

WatchGuard AP432 Indoor Access Point


Quick Facts

Lightning-fast Wi-Fi 6 connections and secure WPA3 encryption.

Wi-Fi is managed in WatchGuard Cloud with integration to other WatchGuard products.

Ideal for expansive offices, campuses, and high-density environments.

Mounting options include T-bar ceiling and flat surface mount. Universal free standing bracket stand sold separately.

Wi-Fi Package Options:


WatchGuard Wi-Fi Package Options

These APs come with powerful Wi-Fi 6 access point management in WatchGuard Cloud, a single management solution for WatchGuard’s full portfolio of products including Endpoint Security, AuthPoint MFA, Firebox appliances and Wi-Fi. It's optimal for designing new wireless ecosystems or replacing existing wireless networks with the latest Wi-Fi 6 technology and secure WPA3 encryption technology.

STANDARD WI-FI

A standard license for Wi-Fi in WatchGuard Cloud offers basic Cloud management features including 24-hour reporting, comprehensive 24/7 support, diagnostics, inventory management and beyond.

UNIFIED SECURITY PLATFORM™ (USP) WI-FI

WatchGuard USP licenses for Wi-Fi in WatchGuard Cloud offer everything included in standard licenses plus 30 days of reporting, VPN configuration, advanced PSA integration and much more.


From indoor remote workspaces or a small office to rugged, expansive outdoor environments - WatchGuard has a range of Wi-Fi 6 access points to fit every wireless need. WatchGuard’s Wi-Fi management license options enable capabilities that support the business needs being faced today and offer the flexibility to evolve alongside the wireless needs of tomorrow.

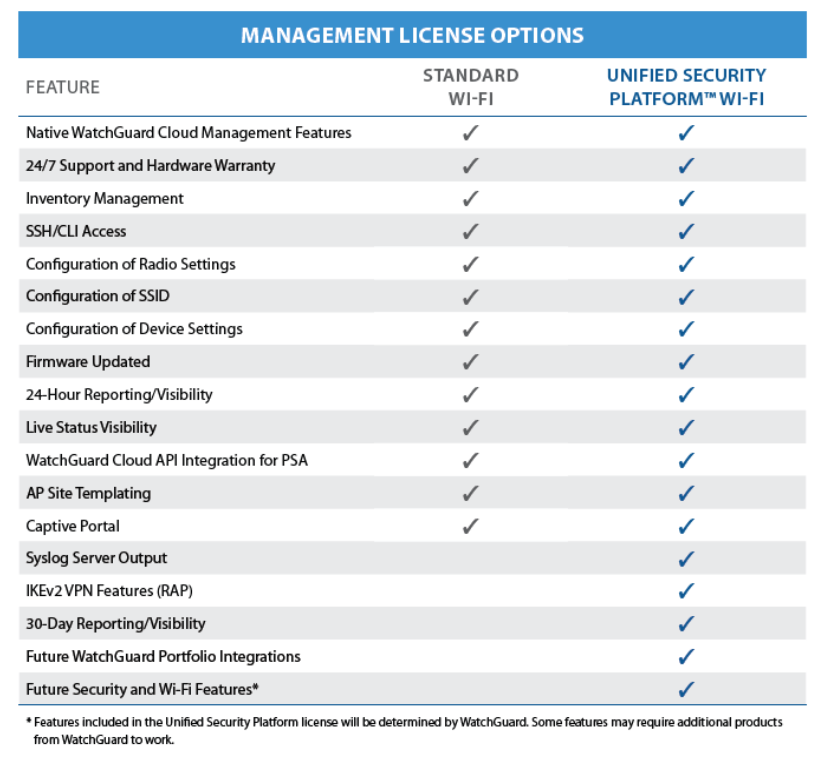

MANAGEMENT LICENSE OPTIONS
FEATURE DESCRIPTION STANDARD WI-FI UNIFIED SECURITY PLATFORM WI-FI
Native WatchGuard Cloud Management Features
24/7 Support and Hardware Warranty
Inventory Management

SSH/CLI Access

Configuration of Radio Settings

Configuration of SSID
Configuration of Device Settings
Firmware Updated
24-Hour Reporting/Visibility
Live Status Visibility
WatchGuard Cloud API Integration for PSA
AP Site Templating
Syslog Server Output -
IKEv2 VPN Features (RAP) -
Captive Portal -
30-Day Reporting/Visibility -
Future WatchGuard Portfolio Integrations -
Future Security and Wi-Fi Features * -

*Features included in the Unified Security Platform license will be determined by WatchGuard. Some features may require additional products from WatchGuard to work.

About WatchGuard Technologies, Inc.

WatchGuard® Technologies, Inc. is a global leader in network security, endpoint security, secure Wi-Fi, multifactor authentication, and network intelligence. The company’s awardwinning products and services are trusted around the world by more than18,000 security resellers and service providers to protect more than 250,000 customers.

WatchGuard’s mission is to make enterprise-grade security accessible to companies of all types and sizes through simplicity, making WatchGuard an ideal solution for midmarket businesses and distributed enterprises. The company is headquartered in Seattle, Washington, with offices throughout North America, Europe, Asia Pacific, and Latin America.


WatchGuard AP130


WatchGuard AP130

Highlights:

WatchGuard Solutions

Robust Wireless for High-Density Indoor Deployments

Prepare your indoor network with the AP432, our high-performance Wi-Fi 6 access point that is essential to support every wireless need with ease. Simplified management is delivered with WatchGuard Cloud, unlocking endless possibilities across captive portals, device health, remote VPN, user management, and more.

Powerful Wireless Experience

WatchGuard’s Wi-Fi 6 access points include a complete and powerful wireless feature set delivered by a zero-touch deployment experience. Utilizing secure WPA3 encryption, the AP432 is perfect for high-density indoor environments, including expansive offices, large corporate or education campuses, and everything in between that deserves reliable performance and dedicated security. Lightning-fast connectivity is served through up to 2.4 Gbps on the 5 Ghz band plus one Ethernet port supporting 2.5 Gbps. Integrated security is enabled through centralized management, intelligent reporting, and deep visibility into wireless ecosystems to stay focused on what matters.

End-to-End Management Features

Ensure a comprehensive view of crucial reporting such as signal strength, bandwidth consumption, and distribution. Captive portals deliver excellent end-user experiences while keeping them secure. Manage multi-tier and multi-tenant ecosystems by reducing the complexity of managing multiple services. Efficiently deploy, configure, and report on Wi-Fi connectivity for every user with deep cross-platform integration to WatchGuard's portfolio of products. Dive into WatchGuard Cloud!

Flexible Management of Wi-Fi in WatchGuard Cloud

A standard license for Wi-Fi in WatchGuard Cloud offers basic Cloud management features that include 24-hour reporting, comprehensive 24/7 support, diagnostics, inventory management, and beyond. WatchGuard Unified Security Platform Management licenses for Wi-Fi in WatchGuard Cloud offer everything included in the Standard license plus 30 days of reporting, VPN configuration, advanced PSA integration, and much more.

Add Wi-Fi 6 to Every Space

Wi-Fi is essential to stay connected, work, play, and manage IoT devices. WatchGuard's Wi-Fi 6 access points deliver exceptional performance with an easy way to benefit from the security across many use cases such as remote work, retail experiences, and on expansive campuses. WatchGuard’s AP432 is perfect for high-density indoor deployments and is ideal to deliver superior Wi-Fi 6 performance and WPA3 security.


WI-FI WITH WATCHGUARD - WE’VE GOT YOU COVERED!

From indoor remote workspaces or a small office to rugged, expansive outdoor environments – WatchGuard has a range of Wi-Fi 6 access points to fit every wireless need. WatchGuard’s Wi-Fi management license options enable capabilities that support the business needs being faced today and offer the flexibility to evolve alongside the wireless needs of tomorrow.

WatchGuard AP432 Indoor Access Point

Specifications:


AP430 Specifications
Physical Specifications

Property

Specification

Physical Dimensions

205 mm x 205 mm x 33.2 mm (8.07 in x 8.07 in x 1.31 in)

Weight

0.56 kg (1.234 lbs)

Operating Temperature

0˚C to 40˚C (32˚F to 104˚F)

Storage Temperature

-30˚C - 80°C (-22°F - 176°F)

Humidity

5% to 95% non-condensing

Power Consumption

19.5 W (max) / 11.65 W (avg)

Processor RAM

Qualcomm IPQ8072A Quad-Core CPU ARM Cortex A53 2.0 GHz with Flash: SPI 8 MB, NAND: 256 MB, RAM: DDR4 2 GB

Regulatory Specifications - USA

RF AND ELECTROMAGNETIC - FCC Part 15.247, 15.407
SAFETY - UL

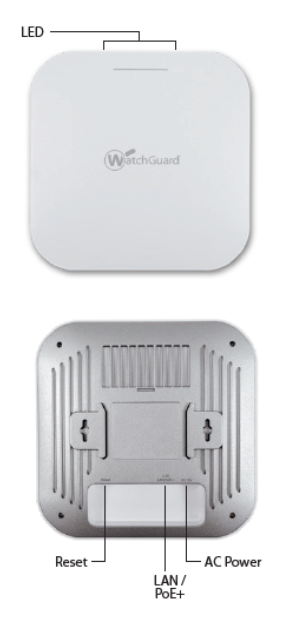

Port

Description

Connector Type

Speed/Protocol

Power

12V DC/802.3at (PoE+)

3.5 mm overall diameter/

1.35 mm center pin/hole

N/A

Reset

Reset to factory default settings

Pin hole push button

Hold down and power cycle the device to reset

LAN / PoE+

Multigig Ethernet port used to connect to the wired LAN and communicate with WatchGuard

Cloud. This port can also be used to power the device using the 802.3at (PoE+) standard.

RJ-45

1/2.5 Gbps Gigabit Ethernet 802.3at Class 4 PoE+

WI-FI SPECIFICATIONS – Frequency, Modulation, and Data Rates

IEEE 802.11b/g/n/ax

Frequency Band

Transmission

USA & Canada

(FCC/IC)

Europe

(ETSI)

2400 MHz ~ 2473.5 MHz

2400 MHz ~ 2483.5 MHz

Modulation Type

DSSS, OFDM, OFDMA

Peak Data Rates

Up to 1148 Mbps (MCS 0-15)

Antenna

Integrated modular high efficiency PIFA antenna x4

Maximum Transmit Power

Up to 23 dBm and a 3 dBi antenna gain

IEEE 802.11a/n/ac/ax

Frequency Band

Transmission

USA & Canada

(FCC/IC)

Europe

(ETSI)

5.15 GHz ~ 5.25 GHz

5.25 GHz ~ 5.35 GHz

5.725 GHz ~ 5.825 GHz

5.15 GHz ~ 5.25 GHz

5.25 GHz ~ 5.35 GHz

5.47 GHz ~ 5.725 GHz

Dynamic Frequency Selection

DFS and DFS2

Modulation Type

OFDM, ODFMA

Peak Data Rates

Up to 2400 Mbps (MCS 0-15)

Antenna

Integrated modular high efficiency PIFA antenna x4

Maximum Transmit Power

Up to 23 dBm and a 3 dBi antenna gain

Physical Specifications

Antenna

Internal PIFA

4 x 2.4 GHz (3 dBi peak gain)

4 x 5 GHz (3 dBi peak gain)

Ethernet Ports

One 2.5 Gigabit Ethernet port with RJ45 connector type.

This port can also be used to power the device using the 802.3at (PoE+).

Reset

Pinhole push button

Input Power

12V DC/2A (3.5 mm overall diameter/1.35 mm center pin/hole)/802.3at (PoE+)

Number of Radios

2 Wi-Fi Radios: One 2.4 GHz and 5 GHz radio each for simultaneous dual band client access

MIMO

4x4 for 2.4/5 GHz Radios

Number of Spatial Streams

4 for 2.4/5 GHz Radios

RF Transmit Power

20 dBm per radio chain (max); Actual power for Tx will depend on Country Regulatory Domain

Simultaneous MU-MIMO Clients

4

Users in a MU-MIMO group with a 2x2 client

3

Bandwidth Agility

Yes

Dynamic Frequency Selection

Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certifications.



Note :
The actual transmit power will be the lowest of:

  • Value specified in the Radio Settings
  • Maximum value allowed in the regulatory domain
  • Maximum power supported by the radio

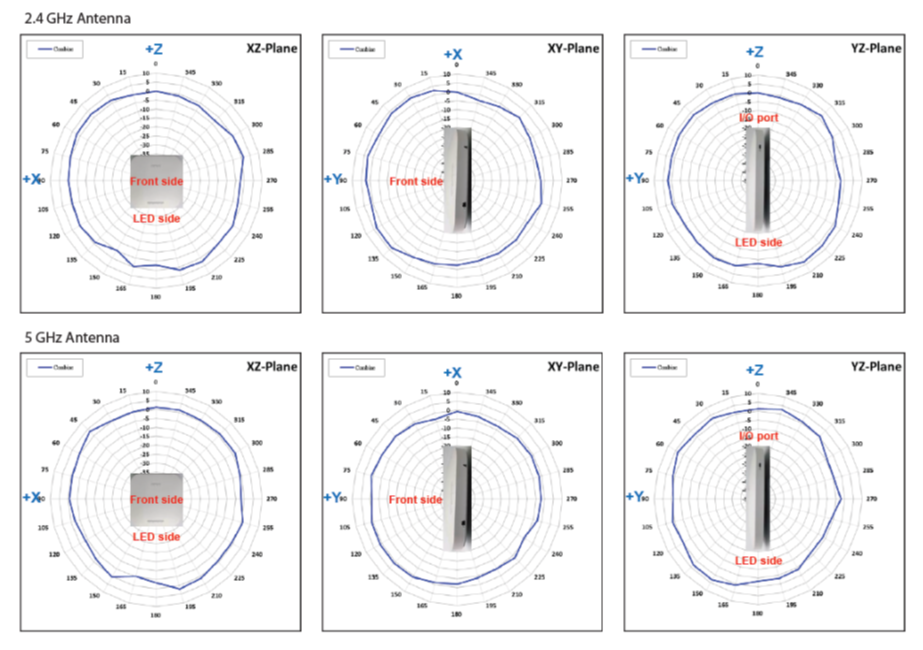

Internal Antenna Radiation Patterns:

WatchGuard AP432 Indoor Access Point

Pricing Notes:

WatchGuard Products
WatchGuard AP432
WatchGuard AP432 Access Point 4*4 OFDMA, Wi-Fi6 (802.11ax), 8 internal antennas, WatchGuard Cloud Ready
WatchGuard’s AP130, AP330, AP430CR, and AP432 requires an active Management License. Select from a Standard or USP Management License to activate and access WatchGuard Cloud. The Management License is required to activate and manage the WatchGuard access points.
#WGA43200000
List Price: $755.00
Our Price: $588.90
WatchGuard Standard Wi-Fi Management License
WatchGuard Standard Wi-Fi Management License 5-yr
#WGWSM00605
List Price: $225.00
Our Price: $175.50
WatchGuard Standard Wi-Fi Management License 3-yr
#WGWSM00603
List Price: $150.00
Our Price: $117.00
WatchGuard Standard Wi-Fi Management License 1-yr
#WGWSM00601
List Price: $75.00
Our Price: $58.50
WatchGuard USP Wi-Fi Management License
WatchGuard USP Wi-Fi Management License 5-yr
#WGWUM22005
Our Price: $375.00
WatchGuard USP Wi-Fi Management License 3-yr
#WGWUM22003
Our Price: $250.00
WatchGuard USP Wi-Fi Management License 1-yr
#WGWUM22001
Our Price: $125.00
WatchGuard AP432 with Standard Subscription
WatchGuard AP432 with 3-yr Standard Subscription
#WGA43222123
Our Price: $27.00
WatchGuard AP432 with USP Wi-Fi Subscription
WatchGuard AP432 with 3-yr-USP Wi-Fi Subscription
#WGA43222023
Get a Quote!
Accessories
WatchGuard AP Universal Free Standing Bracket
#WG9017
Our Price: $60.00
Power Supply for WatchGuard AP225W/AP130/AP330/AP432
#WG9009
Our Price: $25.00
