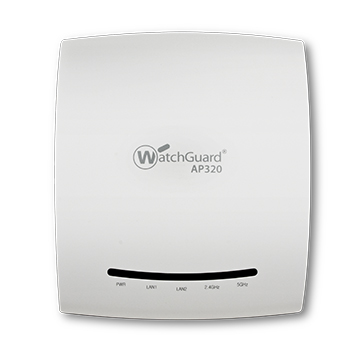

WatchGuard AP320 Indoor 3x3 MIMO Dual Radio Access Point
Wireless Indoor Cloud-Managed 3x3 MIMO Dual Radio Access Point

WatchGuard AP320

Sorry, this unit has been discontinued and is no longer available for purchase, replace by WatchGuard AP330. End of Sale (EOS): 01 Oct 2018. End of Life (EOL) for the WatchGuard AP320 is 01 Oct 2021 - you will not be able receive support after this date even with a 1 Year contract.

Live Demo Box, Click here!

WatchGuard Access Point Overview:

Offering basic Wi-Fi access doesn't give you a competitive advantage, it offers you a chance to compete. With benefits ranging from increased productivity to improved customer satisfaction, implementing a wireless network for your employees and guests has become the table stakes of doing business. But Wi-Fi also opens your business to significant security risks, and can be complicated to deploy and manage, not to mention expensive.

WatchGuard Wi-Fi Cloud solutions, true game-changers in today's market, are engineered to provide a safe, protected airspace for your Wi-Fi environments, while eliminating administrative headaches and greatly reducing costs. With expansive engagement tools and visibility into business analytics, they deliver the competitive advantage your business needs to succeed.

Enterprise-Grade Wireless Intrusion Prevention System (WIPS)Enterprise-Grade Wireless Intrusion Prevention System (WIPS)

Our cloud-managed access points have built-in WIPS to help ensure you have the protection you need. Using patented Marker Packet technology, WatchGuard WIPS defends your airspace from unauthorized devices, man-in-the-middle and denial-of-service attacks, rogue APs and more – and with close to zero false positives. For even greater protection, deploy our APs with a WatchGuard Firebox to extend the Firebox's best-in-class UTM defenses, like application control and zero day malware protection, to your WLAN.

Management That Scales

With the WatchGuard Wi-Fi Cloud, IT pros can enjoy an entirely controller-less Wi-Fi management experience including setup, configuration, monitoring, troubleshooting, and improving corporate and guest Wi-Fi access, without worrying about the limitations of legacy controller infrastructure. Wi-Fi Cloud environments easily scale from one to an unlimited number of APs across multiple locations. APs can be grouped in many ways including location, building, floor, and customer to maintain consistent policies.

Ruthless on PerformanceRuthless on Performance

WatchGuard APs come standard with RF optimization, spectrum monitoring, and trouble-shooting built in, which is vastly more reliable than competing solutions that rely on a connection to a management cloud. Incorporating the latest 802.11ac standards, you'll have speeds of up to 1.3 Gbps over the air, without sacrificing security.

Engage with People and Gain Visibility into Business Analytics

The WatchGuard Wi-Fi Cloud delivers unprecedented visibility into every corner of your wireless environment, and beyond. Customizable dashboards and alerts provide a comprehensive overview and the ability to drill down for a more granular view. Business owners, now more than ever, need to leverage technology to get the most bang from their marketing budgets and have concrete data around site metrics like footfall, dwell time, and conversion to drive business decisions. Don't waste money on three separate products (for Wi-Fi access, splash pages, analytics), when WatchGuard's Wi-Fi Cloud gives you all three in one interface for all the business metrics you need to make the best decisions to grow.

GO Mobile Web App

The GO mobile web experience allows you to manage your wireless networks using any mobile device. Managing customer engagement is entirely integrated with standard features enabling simple setup of customized splash pages and personalized customer promotions.

GO Mobile Web App

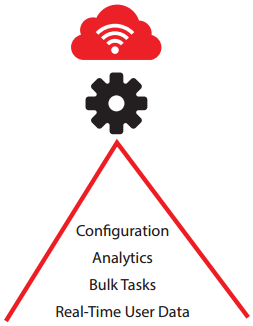

WatchGuard Wi-Fi Cloud is built from the ground up on RESTful APIs to handle even the largest WLAN networks that, until now, would need to be served by on-premises WLAN controller solutions.


Reach Out to Mobile Users

Turn your Wi-Fi environment into a potent source of revenue and customer loyalty by leveraging the combined benefits of secure cloud-managed Wi-Fi, captive portal technology, and social media interaction. Use splash pages like the one at right to grab the attention of today's mobile and connected consumers, engage them with videos, polls and surveys, and then take advantage of built-in analytics tools to better understand their habits and preferences.

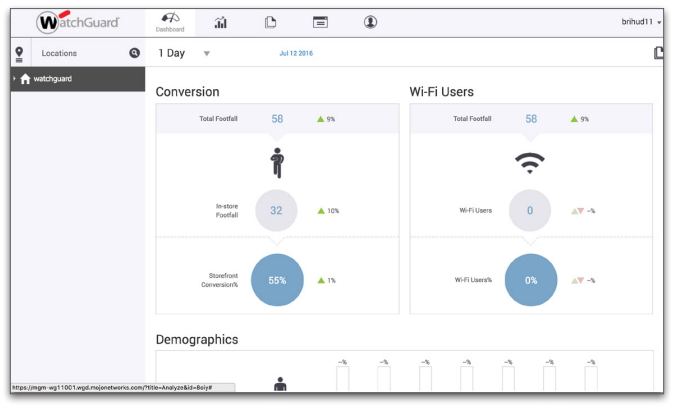

Powerful Engagement & Analytics Tools

Gain actionable insights into customers with social login analytics. In combination with the social Wi-Fi features, data can be used to analyze demographic information including gender, age, and customer buying tendencies. Wi-Fi device location, customer dwell time, footfall, and new vs. repeat users can be captured with zone-based analytics. Dashboards and reports allow administrators to quickly view analytics at all levels, from the highest to the most granular view, across time segments and location groups - and there are no hidden third party costs.

Powerful Engagement & Analytics Tools

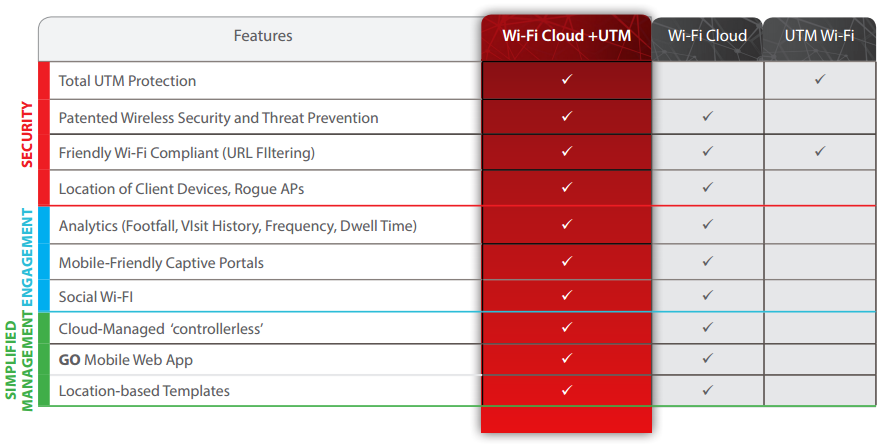

Flexible Deployment Options:

WatchGuard offers three deployment scenarios to meet the needs of SMBs and distributed enterprises. Add an AP120 or AP320 to an existing Firebox UTM-protected network to extend that protection to the WLAN, while managing the device with the Firebox's built-in gateway wireless controller. For full Engage and Analyze features, WIPS protection, scalable management and so much more in a stand-alone deployment, choose our Wi-Fi Cloud option. And for ultimate peace of mind, rely on a Firebox UTM-protected network with WatchGuard Wi-Fi Cloudmanaged APs to realize the full marketing and security potential of a cloud-managed access point solution.

Flexible Deployment Options


Access Points AP120 AP320
Hardware Details
Deployment Indoor Indoor
Number of Radios 2 2
Supported Frequency Bands 2.4 GHz and 5 GHz concurrent 2.4 GHz and 5 GHz concurrent
Frequency Bands (GHz)* 2.400-2.474GHz, 5.150-5.250GHz, 5.250-5.350GHz, 5.470-5.725GHz, 5.725-5.850GHz
Number of Antennas 4 internal, omnidirectional 6 internal, horizontal (120˚)
Peak Antenna Gain 3 dBi 6 dBi
Tx/Rx Streams 2x2 MIMO with 2 spatial streams 3x3 MIMO with 3 spatial streams
Maximum TX Power* 20 dBm 20 dBm
Maximum Data Rate Up to 866 Mbps for 11ac
Up to 300 Mbps for 11n
Up to 1.3 Gbps for 11ac
Up to 450 Mbps for 11n
SSID 8 8
Security Settings WPA-PSK, WPA2-PSK, WPA-PSK/WPA2-PSK (Mixed), WPA-802.1X (Enterprise) WPA2-802.1X (Enterprise) WPA-802.1X/WPA2-802.1X (Mixed), TKIP, AES, TKIP/AES, Captive Portal, MAC whitelist/blacklist, VLAN Tagging
Ethernet 1 x 1 Gb 2 x 1 Gb
Power over Ethernet (PoE) 802.3af/at 802.3af/at
A/C Adapter Optional Optional
PoE Injector Optional Optional
IEEE Standards Supported 802.11a/b/g/n/ac, 802.11i, 802.1q, 802.1X, 802.3af/at, 802.11e
Support & Maintenance 1-year or 3-year subscription to Standard Support for hardware warranty with advance hardware replacement, technical support, and software updates - included with purchase
Environmental Information
Operating Temperature -4 to 158 ˚F (-20 to 55 ˚C) 32 to 104 ˚F (0 to 40 ˚C)
Operating Relative Humidity 5% to 95% Non-condensing
Storage Temperature -40 to 158 ˚F (-40 to 70 ˚C) -40°F to 158°F (-40°C to 70°C )
Non-Operating Relative Humidity 5% to 95% Non-condensing
AC Power Adapter (Optional with AP300 and AP 102)
Input Voltage 100 - 240V AC
Input Current Maximum 500mA
Output Voltage 12V
Product Dimensions 8.26” x 8.26” x 2.6378” (210 x 210 x 67 mm) 6.96” x 6.10” x 1.65” (177 x 155 x 42 mm)
Shipping Dimensions 12.28” x 10.11” x 3.14” (312 x 257 x 80 mm) 8.54” x 8.34” x 2.51” (217 x 212 x 64 mm)
Product Weight 0.85 lbs (0.38 kg) 0.81 lbs (0.37 kg)
Shipping Weight (includes A/C adapter, mounting kit, etc.) 1.8 lbs (0.81 kg) 1.09 lbs (0.5 kg)
Mounting Options Wall / Ceiling Wall / Ceiling
Wireless FCC, IC, CE, MIC
Safety NRTL/C, CB, CE
Control of Hazardous Substances WEEE, RoHS
*Country-specific restrictions apply

Wi-fi Solution:

WatchGuard Wi-Fi Solution Total Wi-Fi Secure Wi-Fi Basic Wi-Fi
Central management via hosted Wi-Fi Cloud

Patented Wireless Intrusion Prevention System (WIPS) for stopping Wi-Fl attacks that steal passwords, credit cards, etc.


Highly scalable management via templates and profiles

Friendly Wi-Fi compliant URL filtering WebBlocker required
Customizable dashboards
Reporting engine with pre-bullt reports including PCI, HIPAA, DoD, wireless vulnerability assessment
Floor map support with visualization of WI-Fl and WIPS signal coverage
Captive portals (splash pages) with pre-built templates
Splash page authentication: click-through, social, guest book, email, SMS, web form, poll, video
Landing pages and templates
Social WI-Fl authentication (Facebook, Twitter, Unkedin,Googlet Instagram, Foursquare)
Graphical and text templates for SMS + URL Interception
Location based analytics: footfall, dwell time, conversion, etc.
Social analytics: age, gender, birthday, language, etc
Customizable analytic reporting
Floor map support for analytic
Central management via Firebox appliance
Standard 24x7 Support

Comparision Guide:


Designed from the ground up for businesses of all types and sizes, access points from WatchGuard deliver the best combination of security, performance, and manageability on the market. When managed by the WatchGuard Wi-Fi Cloud, these access points deliver fast, reliable wireless access while providing our customers with industry-leading wireless security, powerful guest engagement, and business-driven analytic tools.

Choose a cloud-ready access point that meets your business needs – whether indoors or outdoors – without sacrificing security.

  AP120 AP320 AP322
Model Name, Description Built for networks with heavy smartphone and tablet access such as guest or public Wi-Fi environments, or smaller-footprint locations that support limited devices. If you have a branch office, store or a small classroom, this is a solution for you. Perfect for busy environments with diverse client ecosystem and Wi-Fi requirements. This high-horsepower access point can support critical applications like voice, video, and cloud with ease. If you need Wi-Fi for an office, classroom or a meeting space, this is a solution for you. Features a rugged IP67 compliant exterior and delivering broad, fast, and reliable Wi-Fi coverage, this access point brings Wi-Fi to stadiums, schools, outdoor cafes, shipping docks, warehouses, and more. If you need Wi-Fi for the outdoors, this is a solution for you.
Deployment Indoor Indoor Outdoor
MIMO 2x2 3x3 3x3
Number of Antennas 4 6 6
Max Data Rate Up to 866 Mbps for 11ac Up to 300 Mbps for 11n Up to 1.3 Gbps for 11ac Up to 450 Mbps for 11n Up to 1.3 Gbps for 11ac Up to 450 Mbps for 11n
Ethernet Ports 1xGbE 2xGbE (supports wired extension of a SSID) 2xGbE (supports wired extension of a SSID)
Product Dimensions 8.26” x 8.26” x 2.6378” (210 x 210 x 67 mm) 6.96” x 6.10” x 1.65” (177 x 155 x 42 mm) 8.26” x 8.26” x 2.6378” (210 x 210 x 67 mm)

You can manage all of WatchGuard’s access points with either a Firebox® via the Gateway Wireless Controller or with the Wi-Fi Cloud. And, with Wi-Fi Cloud you get an expanded set of features including strong WIPS security, social network enabled captive portals, marketing tools, and location-based analytics for optimal business insights.

Internal Antenna Radiation Patterns:

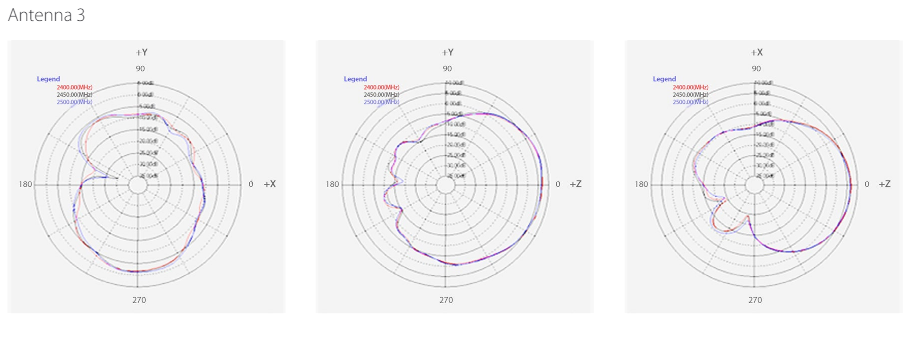

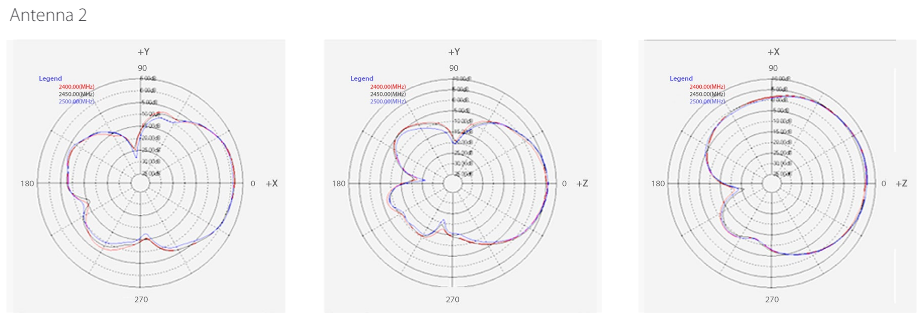

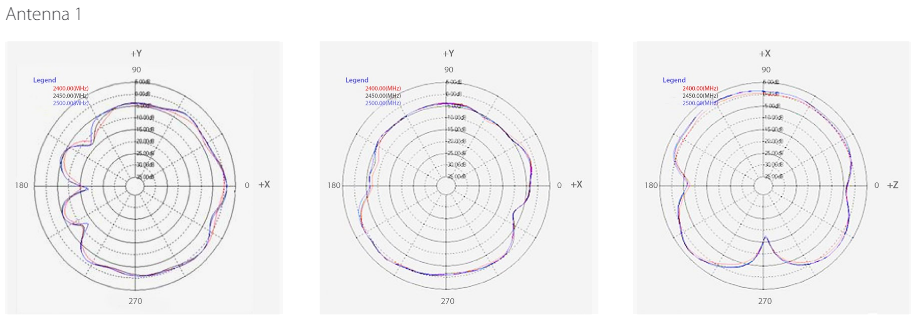

2.4 GHz

2.4 GHz Internal Antenna Radiation Patterns

2.4 GHz Internal Antenna Radiation Patterns

2.4 GHz Internal Antenna Radiation Patterns

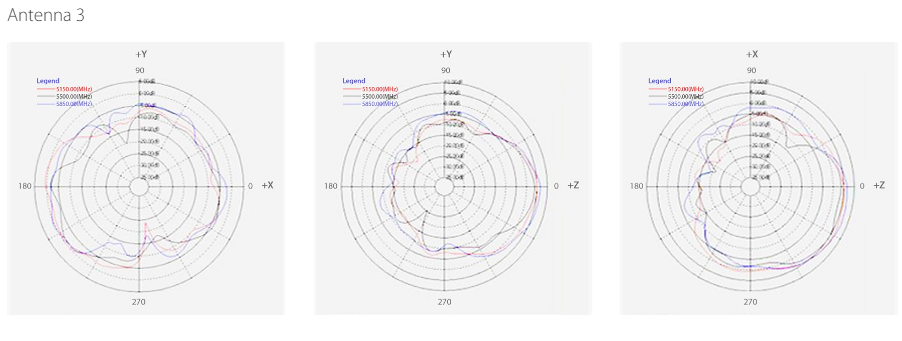

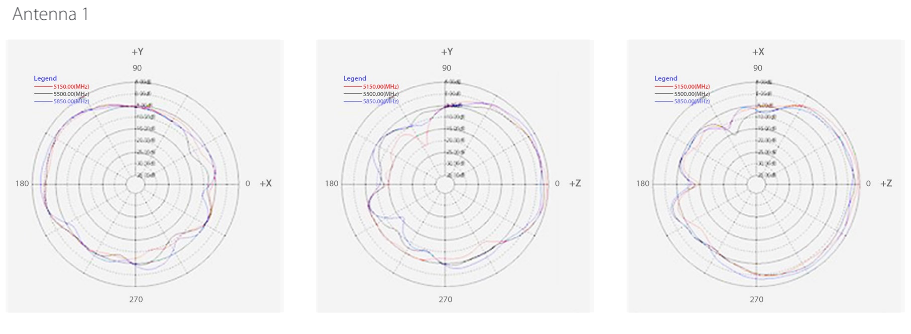

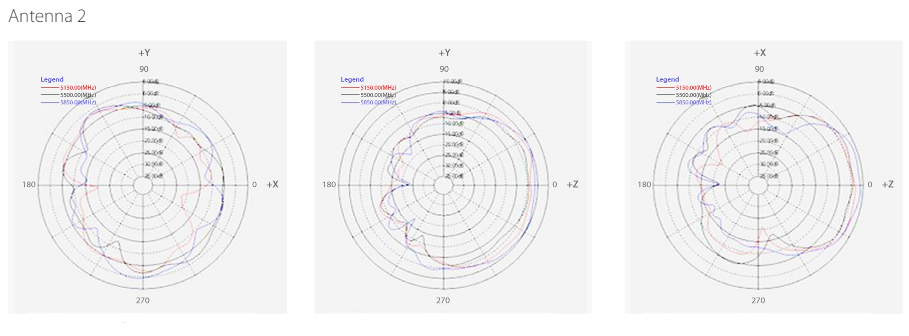

5 GHz

5 GHz Internal Antenna Radiation Patterns

5 GHz Internal Antenna Radiation Patterns

5 GHz Internal Antenna Radiation Patterns

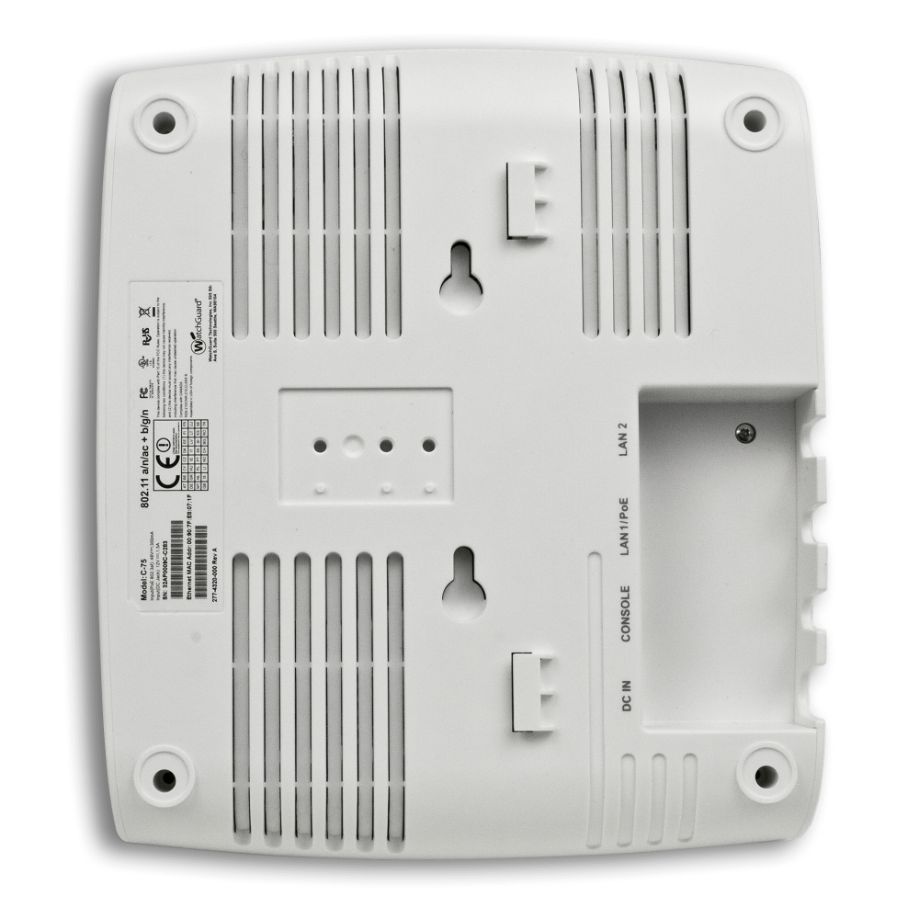

Product Views:


AP120 Bottom


AP120 Bottom


AP120 Bottom


AP120 Bottom
