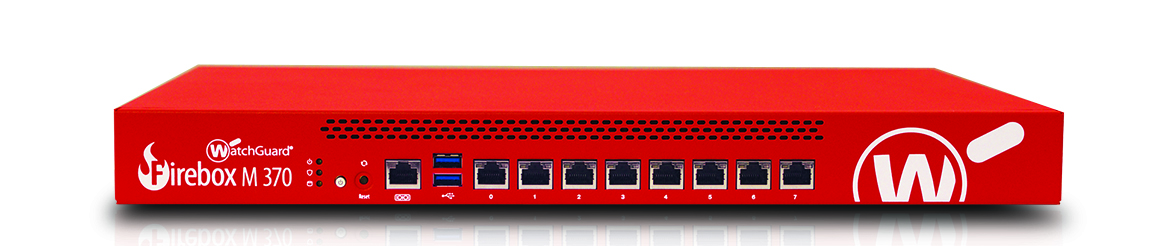

WatchGuard Firebox M370
Up to 8 Gbps Firewall, 4.4 Gbps VPN, 2.7 Gbps UTM; Basic configuration - 8 Gb Ethernet interfaces

Overview:

Up to 8 Gbps firewall throughput, 2.6 Gbps UTM throughput

Because smaller companies are generally less protected and easier to break into, small business has become the new big target for cyber attacks. The Firebox® M270 and M370 firewalls are specifically engineered to defend all types of small businesses against attacks that are no less fierce than those targeting larger organizations. Our unique product architecture enables SMBs to leverage best-in-class security services – from URL filtering and intrusion prevention to application control and data loss prevention - without the cost and complexity of running multiple single-point solutions. The M270 and M370 are part of WatchGuard’s award-winning Firebox security platform. The platform not only provides the most complete suite of unified security controls on the market today, it has consistently been the first to offer solutions for addressing new and evolving network threats including advanced malware and ransomware.

Blazing Fast Performance

Firebox M270 and M370 Unified Threat Management (UTM) solutions are up to 3 times faster than competing products with all security layers turned on, and up to 94 percent faster performing HTTPS inspection, according to the independent test lab Miercom. This ensures you never have to compromise network security for performance.

Quick And Simple Deployment

SMBs usually have smaller, less technical staff, which can make network expansion challenging. RapidDeploy – a powerful, cloud-based deployment and configuration tool – comes standard with WatchGuard Firebox appliances. With it, IT staff can create and store configuration data in the cloud – public or private – and have the appliance directly shipped to its destination. Once the device arrives, it can connect to the cloud for a secure download of its configuration settings, saving your staff travel time and money.

Easy To Manage And Understand

The M270 and M370 are not only easy to initially configure and deploy, they are also designed with an emphasis on centralized management, making ongoing policy and network management simple and straightforward. WatchGuard Dimension, included with purchase, provides a suite of big data visibility and reporting tools that instantly identify and distill key network security threats, issues and trends so you can take immediate preventive or corrective action. Security is complex, running it doesn’t have to be.

Features & Benefits

• Enterprise-grade prevention, detection, correlation and response from the perimeter to the endpoint with our Total Security Suite.
• Latest generation multi-core processors provide the power to run all security scanning engines in parallel without causing performance bottlenecks.
• Gain critical insights about network security, from anywhere and at any time, with WatchGuard Dimension.
• Built-in compliance reports, including PCI and HIPAA, mean one-click access to the data you need to ensure compliance requirements are met.
• Up to 8 Gbps firewall throughput. Turn on additional security services and still see up to 2.6 Gbps throughput.

Features:

Quick Facts

• Latest generation Freescale multi-core processors provide the power to run all security scanning engines in parallel without causing performance bottlenecks.
• 8 Gigabit Ethernet ports support high-speed LAN backbone infrastructures & gigabit WAN connections.
• Up to 8 Gbps firewall throughput. Turn on optional security services and still see up to 820 Mbps throughput.
• Nothing could be easier than WatchGuard’s drag-and-drop Branch Office VPN setup – three clicks and your remote office is connected.

Specifications:

Firebox	M270	M370
Throughput
Firewall (UDP 1518)	4.9 Gbps	8 Gbps
Firewall (IMIX)	1.8 Gbps	4.7 Gbps
VPN (UDP 1518)	1.6 Gbps	4.6 Gbps
VPN (IMIX)	480 Mbps	1.4 Gbps
HTTPS (IPS enabled)	480 Mbps	800 Mbps
Gateway AntiVirus	2.1 Gbps	3.0 Gbps
IPS (fast/full scan)	2.3/0.9 Gbps	4.8/2.5 Gbps
UTM (fast/full scan)	1.6/0.8 Gbps	2.6/1.7 Gbps
Capacity
Interfaces 10/100/1000	8	8
I/O interfaces	1 serial/2 USB	1 serial/2 USB
Concurrent connections	2,000,000	3,300,000
Concurrent connections (proxy)	300,000	330,000
New connections per second	40,000	51,000
VLANs	100	200
WSM licenses (incl)	4	4
TDR Host Sensors included	60	150
Authenticated users limit	500	500
VPN Tunnels
Branch Office VPN	50	100
Mobile VPN	75	100
Security Features
Firewall	Stateful packet inspection, deep packet inspection, proxy firewall
Application proxies	HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy
Threat protection	DoS attacks, fragmented & malformed packets, blended threats & more
VoIP	H.323, SIP, call setup and session security
Filtering options	Browser Safe Search, Google for Business
VPN & Authentication
Cloud providers	AWS (Static/Dynamic), Azure (Static/Dynamic)
Encryption	AES 256-128 bit, 3DES, DES
IPSec	SHA-2, IKE v1/v2, IKE pre-shared key, 3rd party cert, Suite B
Single sign-on	Windows, Mac OS X, mobile operating systems, RADIUS
Authentication	RADIUS, LDAP, Windows Active Directory, VASCO, RSA SecurID, internal database, Duo, SMS Passcode
Management
Logging and notifications	WatchGuard, Syslog, SNMP v2/v3
User interfaces	Centralized console (WSM), Web UI, scriptable CLI
Reporting	WatchGuard Dimension includes over 100 pre-defined reports, executive summary and visibility tools
Certifications
Security*	ICSA Firewall, ICSA IPSec VPN, CC EAL4+, FIPS 140-2
Safety	NRTL/C, CB
Network	IPv6 Ready Gold (routing)
Hazardous substance control	WEEE, RoHS, REACH
Networking
Routing	Static, Dynamic (BGP4, OSPF, RIP v1/v2), Policy-based routing
High Availability	Active/passive, active/active with load balancing
QoS	8 priority queues, DiffServ, modified strict queuing
IP address assignment	Static, DHCP (server, client, relay), PPPoE, DynDNS
NAT	Static, dynamic, 1:1, IPSec traversal, policy-based, Virtual IP for server load balancing
Link aggregation	802.3ad dynamic, static, active/backup
Other features	Port Independence, Multi-WAN failover and load balancing, server load balancing, host header redirection, USB modem as a dedicated interface
Physical and Environment	M270	M370
Physical and Power Specifications
Product Dimensions	17.2” x 1.73” x 12.6” (438 x 44 x 320mm)	17” x 1.75” x 12.08” (431 x 44 x 307 mm)
Shipping Dimensions	22.0” x 21.3” x 5.1” (560 x 540 x 130mm)	18” x 21” x 5.25” (45.7 x 53.3 x 13.3 cm)
Shipping Weight	18.9 lbs (8.5Kgs)	17 lbs (7.7 Kgs)
AC Power	100-240 VAC Autosensing
Power Consumption	U.S. 75 Watts (max), 256 BTU/hr (max)
Rack Mountable	1U rack mount kit included
Environment Specifications
Operating Temperature	32° F to 104° F / 0° C to 40° C
Storage Temperature	-40° F to 158° F / -40° C to 70° C
Operating Relative Humidity	10% to 85% non-condensing
Storage Relative Humidity	10% to 95% non-condensing
Operating Altitude	0 to 9,843 ft at 95° F (3,000 m at 35° C)
Storage Altitude	0 to 15,000 ft at 95° F (4,570 m at 35° C)
MTBF	51,644 hours @ 77° F (25° C)

Options & Upgrades:

WatchGuard Security Services

WatchGuard offers the most comprehensive portfolio of network security services, from traditional IPS, GAV, application control, spam blocking, and web filtering to more advanced services for protecting against advanced malware, ransomware, and the loss of sensitive data. WatchGuard also offers a full suite of network visibility and management services.

Fundamental Security Services

Advanced Security Services

One Appliance, One Package, Total Security

Simplicity is our mission at WatchGuard and that mission extends beyond how the product is built to how it is packaged. While all of our services are offered à la carte, we have worked to develop two packages that simplify the decision-making process. The Total and Basic Security Suite packages are available on our Firebox T and M Series appliances, as well as our Firebox Cloud and FireboxV virtual models.

• The Basic Security Suite includes all of the traditional network security services typical to a UTM appliance: IPS, GAV, URL filtering, application control, spam blocking and reputation lookup. It also includes our centralized management and network visibility capabilities, as well as, our standard 24x7 support.
• The Total Security Suite includes all services offered with the Basic Security Suite plus advanced malware protection, data loss protection, enhanced network visibility capabilities, a secure access portal, and the ability to take action against threats right from Dimension, our network visibility platform.

Documentation:

Download the WatchGuard Firebox M270 & M370 Datasheet (PDF).
