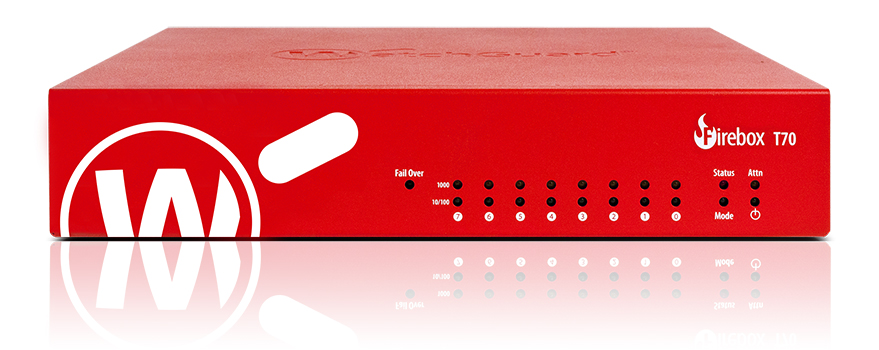

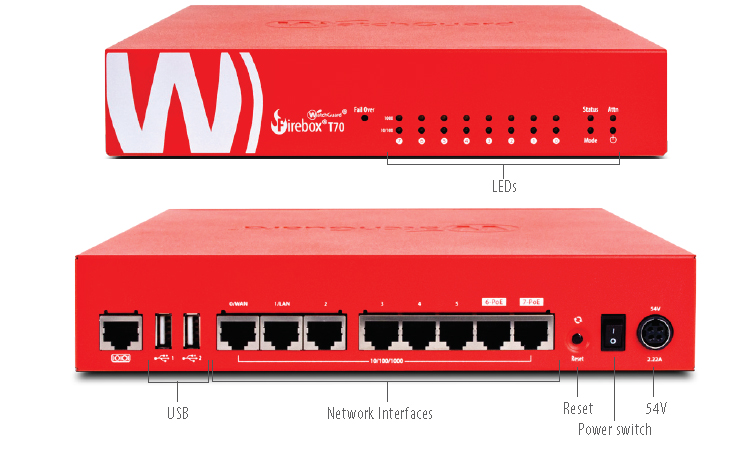

WatchGuard Firebox T70
WatchGuard Firebox T70 - Up to 550 Mbps UTM full scan, 1300 Mbps Firewall IMIX, 220 Mbps VPN IMIX, 8 Gb Ethernet interfaces, incl. 2 PoE+

Overview:

• Firewall throughput of up to 4 Gbps to keep traffic moving
• Industry-leading UTM throughput speed of over 1 Gbps
• Built-in management and visibility console provides high-level and granular views into all network activity for quick preventive or remedial action
• Intel AES-NI instruction set provides users with accelerated HTTPS performance, which is critical in protecting against all types of malware
• WatchGuard’s comprehensive portfolio of network security services boosts protection in critical attack areas
• Your security investment is future- proofed, with the only appliance available today that can keep up with the continuously expanding speeds of fiber broadband

Many organizations today are dependent on fast, reliable and secure Internet connectivity, but are struggling to find network security solutions that can keep up with their ever-growing needs. While many rack-mount solutions can keep up with today’s fastest fiber-to-the-premises speeds, there are not currently any tabletop security appliances available that have this capability, especially when running with Gateway Antivirus, Intrusion Prevention, and Application Control all enabled. With the release of the WatchGuard Firebox T70, SMBs and distributed enterprise organizations can now leverage today’s lightning fast fiber Internet speeds while enjoying industry-leading network security.

"Overall, the WatchGuard Firebox T70 exhibited the best overall throughput performance of the competitive security appliances tested. In addition, while competitors’ performance was greatly reduced as more security functions and features were enabled, the WatchGuard Firebox T70’s continued to prove exceptional performance." ~ Miercom CEO Rob Smithers

Industry-leading UTM Performance

WatchGuard’s newest hardware appliance sets the standard for tabletop performance, boasting the highest performance levels across the most critical benchmarks. The WatchGuard Firebox T70 will make network slowdown concerns a thing of the past, with blazing-fast performance capable of delivering full UTM protection at over 1 gigabit per second.

Power For Peripheral Devices

The WatchGuard Firebox T70 is the only tabletop appliance available on the market today that provides users with two power-over-Ethernet (PoE) ports. These ports enable the charging of peripheral devices, such as access points and security cameras, allowing administrators to extend the reach of their networks without having to run costly AC power to remote devices.

Quick And Simple Deployment

WatchGuard RapidDeploy takes the guess work out of the firewall deployment process. The innovative, cloud-based configuration capabilities allow WatchGuard firewall and UTM solutions to securely configure themselves. Rather than manually provisioning the device in advance, IT staff can create and store configuration data in the cloud – public or private – and have the appliance directly shipped to its destination.

Once the device is on location and connected to the Internet, it effectively deploys itself for a secure download of its configuration settings. This advantage provides time and cost savings to growing businesses such as distributed enterprises and managed service providers.

Compare Models:

WatchGuard® Model	WatchGuard® Firebox T55/T55-W	WatchGuard® Firebox T70	WatchGuard Firebox® M270
Ideal For	Small business, distributed enterprises, and MSSPs that need a powerful solution that can be quickly deployed in remote locations and centrally managed.	Midsize businesses and distributed enterprises	Small to midsize businesses
Hardware
Model Upgradeable	N/A	N/A	N/A
Interfaces	5 Gb	8 Gb	8 Gb
Security
Application Proxies	HTTP, HTTPS, SMTP, FTP, DNS, TCP-UDP, POP3, SIP, H.323	HTTP, HTTPS, SMTP, FTP, DNS, TCP-UDP, POP3, SIP, H.323	HTTP, HTTPS, SMTP, FTP, DNS, TCP-UDP, POP3, SIP, H.323
Intrusion Prevention (DOS, DDOS, PAD, port scanning, spoofing attacks, address space probes, and more)
Wireless Models	802.11a/b/g/n/ac, WPA, WPA2, WEP, Wireless Guest Services	N/A	N/A
User Authentication with transparent Windows authentication
Performance
Firewall Throughput	1 Gbps	4 Gbps	4.9 Gbps
VPN Throughput	360 Mbps	740 Mbps	1.6 Gbps
AV Throughput	636 Mbps	1.2 Gbps	2.1 Gbps
IPS Throughput	636 Mbps	1.5 Gbps	2.3 Gbps
UTM Throughput	523 Mbps	1.1 Gbps	1.6 Gbps
Concurrent Sessions*	1,300,000	800,000	2,000,000
VPN Tunnels
Branch Office VPN Tunnels	40	50	50
Mobile VPN with SSL/L2TP	50	60	75
Mobile VPN with IPSec	50	60	75
Management
Optional Centralized (Multibox) Management. Optional licenses enable Drag and Drop VPN and one-touch appliance updates.	WatchGuard System Manager Device Upgrade license required.	4-device WatchGuard System Manager license included with purchase	4-device WatchGuard System Manager license included with purchase
Networking Features
Dynamic NAT
Static NAT
One to One NAT
VLAN	75	75	100
Policy-Based Routing
WAN Failover
Multi-WAN Load Balancing
Server Load Balancing
Traffic Management/QoS
High Availability Active/Active or Active/Passive
Dynamic Routing
VoIP (SIP and H.323) Support
Additional Security Subscriptions
Support and Maintenance Program	1-year and 3-year subscriptions available	24x7 Support included with Security Suite	24x7 Support included with Security Suite
Access Portal	N/A	N/A	Optional
Application Control	Optional	Optional	Optional
APT Blocker	Optional	Optional	Optional
Data Loss Prevention	Optional	Optional	Optional
DNSWatch	Optional	Optional	Optional
Gateway AntiVirus	Optional	Optional	Optional
IntelligentAV	N/A	N/A	Optional
Intrusion Prevention Service (IPS)	Optional	Optional	Optional
Network Discovery	Optional	Optional	Optional
Reputation Enabled Defense	Optional	Optional	Optional
spamBlocker with Virus Outbreak Detection	Optional	Optional	Optional
Threat Detection and Response	Optional	Optional	Optional
WebBlocker with HTTPS URL filtering	Optional	Optional	Optional

Strong Security At Every Layer

Uniquely architected to be the industry’s smartest, fastest, and most effective network security products, WatchGuard solutions deliver in-depth defenses against advanced malware, ransomware, botnets, trojans, viruses, drive-by downloads, data loss, phishing and much more.

Multiple Purchase Options

The flexibility of WatchGuard’s integrated platform makes it easy to have exactly the security components your business network requires. Talk to your authorized WatchGuard reseller about very affordable bundled subscriptions for the Firebox T70.

Expert Guidance And Support

An initial Support subscription comes with every Firebox T70 appliance. Standard Support, which is included in the Basic Security Suite, provides hardware warranty with advance hardware replacement, 24 x 7 technical support, and software updates. An upgrade to Gold level support is included in WatchGuard’s Total Security Suite.

*Concurrent sessions here represent the number of bi-directional connections.
Throughput rates are determined using multiple flows through multiple ports and will vary depending on environment and configuration. Max firewall throughput tested using 1518 byte UDP packets based on RFC 2544 methodology.

Options & Upgrades:

WatchGuard Security Services

WatchGuard offers the most comprehensive portfolio of network security services, from traditional IPS, GAV, application control, spam blocking, and web filtering to more advanced services for protecting against advanced malware, ransomware, and the loss of sensitive data. WatchGuard also offers a full suite of network visibility and management services.

Fundamental Security Services

Advanced Security Services

One Appliance, One Package, Total Security

Simplicity is our mission at WatchGuard and that mission extends beyond how the product is built to how it is packaged. While all of our services are offered à la carte, we have worked to develop two packages that simplify the decision-making process. The Total and Basic Security Suite packages are available on our Firebox T and M Series appliances, as well as our Firebox Cloud and FireboxV virtual models.

• The Basic Security Suite includes all of the traditional network security services typical to a UTM appliance: IPS, GAV, URL filtering, application control, spam blocking and reputation lookup. It also includes our centralized management and network visibility capabilities, as well as, our standard 24x7 support.
• The Total Security Suite includes all services offered with the Basic Security Suite plus advanced malware protection, data loss protection, enhanced network visibility capabilities, a secure access portal, and the ability to take action against threats right from Dimension, our network visibility platform.

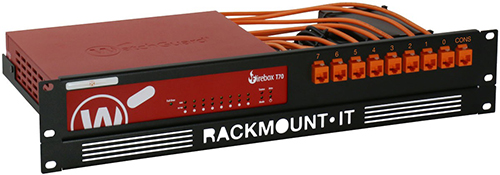

Rackmount:

Rack mount kit for:

- WatchGuard Firebox T70

The RM-WG-T4 gives you the ability to mount your WatchGuard Firebox T70 in a 19" rack. The kit is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access.

Assembly will take about 5 minutes. Simply slide your WatchGuard device in the kit, place the retainers and connect the supplied cables to the keystones.

Other colors can be delivered on project basis

Specifications
Color	RAL 9005 Jet Black
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 x 18.98 x 8.54 in.
Number of connections brought to the front	9
Console port to the front	Yes
Cables	9x 0.5m cables
Couplers	9x RJ45 couplers
Supported Models	- WatchGuard Firebox T70
What's in the box	- 1x WG-Rack + RJ45 couplers - 1x Rackmount.IT front plate - Cables - Assembly materials - Installation guide
EAN	8718868918369
UPC	852754006360

Download the RM-WG-T4 Datasheet (PDF).

Documentation:

Download the WatchGuard Firebox T70 Datasheet (.PDF)
