WatchGuard AP330
2x2:2 OFDMA, 802.11ax support
One 2.5 Gigabit Ethernet port, six integrated antennas, PoE+ power


WatchGuard AP330

WatchGuard Products
WatchGuard AP330
WatchGuard AP330
#WGA33000000
List Price: $617.00
Our Price: $481.26
WatchGuard AP330 Certified Engineer
WatchGuard AP330 Certified Engineer
#WGA33003503
Our Price: $216.00
WatchGuard Standard Wi-Fi Management License
WatchGuard Standard Wi-Fi Management License 5-yr
#WGWSM00605
List Price: $225.00
Our Price: $175.50
WatchGuard Standard Wi-Fi Management License 3-yr
#WGWSM00603
List Price: $150.00
Our Price: $117.00
WatchGuard Standard Wi-Fi Management License 1-yr
#WGWSM00601
List Price: $75.00
Our Price: $58.50
WatchGuard USP Wi-Fi Management License
WatchGuard USP Wi-Fi Management License 5-yr
#WGWUM22005
List Price: $375.00
Our Price: $292.50
WatchGuard USP Wi-Fi Management License 3-yr
#WGWUM22003
List Price: $250.00
Our Price: $195.00
WatchGuard USP Wi-Fi Management License 1-yr
#WGWUM22001
List Price: $125.00
Our Price: $97.50
WatchGuard AP330 Standard Subscription
WatchGuard AP330 with 3-yr Standard Subscription
#WGA33022123
Our Price: $23.00
WatchGuard AP330 USP Wi-Fi Subscription
WatchGuard AP330 with 3-yr USP Wi-Fi Subscription
#WGA33022023
Our Price: $25.00
Accessories
WatchGuard AP Universal Free Standing Bracket
#WG9017
Our Price: $60.00
WatchGuard 802.3at PoE+ Injector with AC cord (US)
#WG8599
Our Price: $60.00
Power Supply for WatchGuard AP225W/AP130/AP330
#WG9009
Our Price: $25.00

More pricing below, click here!

Live Demo Box, Click here!

Overview:

The AP 330 is WatchGuard’s all-purpose Wi-Fi 6 access point and is the ideal choice for mid-density indoor environments of all sizes to utilize the most secure WPA3 encryption for a seamless experience. Includes 2x2 radio scanning optimized for Wi-Fi 6 with six internal antennas. Maximum TX power delivers 22 dBm and a 2dBi antenna gain with one Ethernet port supporting up to 2.5 Gbps. These Wi-Fi 6 access points deliver a maximum data rate for a seamless wireless experience by supporting up to 1.2 Gbps on the 5 GHz


Perfect For Mid- Range Density and Growing Networks
The AP330 enables high-traffic areas to be supported with lightning-fast speed. Designed for indoor mid-range density, the AP330 delivers superior Wi-Fi 6 performance across distributed networks and is perfect for building a network that is easily scalable.

Cloud-Based Management
You can manage the AP330 with WatchGuard Cloud. WatchGuard Cloud delivers one simplified platform for Wi-Fi management to easily deploy, configure, and report on one unified security platform. WatchGuard Cloud eliminates the need for any physical or virtual infrastructure requirements, with multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform. WatchGuard Cloud environments easily scale from one to an unlimited number of access points across multiple locations. Access points can be grouped in many ways including location, building, floor, customers, and remote users to maintain consistent policies across a distributed network.

Cross-Platform Benefits

  • Simple VPN connectivity to a Firebox managed in WatchGuard Cloud.
  • Multi-tier and multi-tenant capabilities through a centralized WatchGuard Cloud management platform with enhanced activation and intelligent inventory management.
  • Captive Portal creation with custom corporate branding such as company logos, background, and thumbnail images.
  • Enterprise authentication is delivered through easily managed WatchGuard Authentication Domains.
  • Centralized management for WatchGuard’s portfolio of products such as AuthPoint, Firebox, and endpoint solutions.

Features & Benefits

  • Wi-Fi 6 and WPA3

  • Includes 2x2 radio optimized for Wi-Fi 6 with six omnidirectional internal antennas

  • Maximum TX power delivers 22 dBm and a 2 dBi antenna gain with one Ethernet port supporting up to 2.5 GBps

  • PoE power includes 12V/2A DC In, 802.3at (PoE+)

  • These Wi-Fi 6 access points deliver a maximum data rate for a seamless wireless experience by supporting up to 1201 Mbps on the 5 GHz band and 574 Mbps available on the 2.4 GHz band

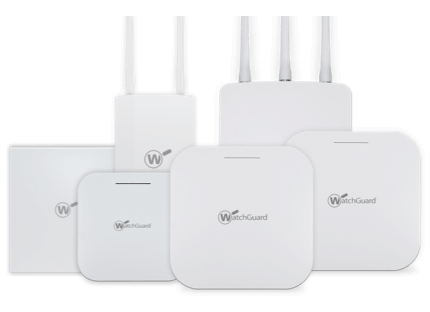

Wi-Fi With WatchGuard:


WatchGuard AP130

From indoor remote workspaces or a small office to rugged, expansive outdoor environments - WatchGuard has a range of Wi-Fi 6 access points to fit every wireless need. WatchGuard’s Wi-Fi management license options enable capabilities that support the business needs being faced today and offer the flexibility to evolve alongside the wireless needs of tomorrow.

MANAGEMENT LICENSE OPTIONS
FEATURE DESCRIPTION STANDARD WI-FI UNIFIED SECURITY PLATFORM WI-FI
Native WatchGuard Cloud Management Features
24/7 Support and Hardware Warranty
Inventory Management

SSH/CLI Access

Configuration of Radio Settings

Configuration of SSID
Configuration of Device Settings
Firmware Updated
24-Hour Reporting/Visibility
Live Status Visibility
WatchGuard Cloud API Integration for PSA
AP Site Templating
Syslog Server Output -
IKEv2 VPN Features (RAP) -
Captive Portal -
30-Day Reporting/Visibility -
Future WatchGuard Portfolio Integrations -
Future Security and Wi-Fi Features * -

*Features included in the Unified Security Platform license will be determined by WatchGuard. Some features may require additional products from WatchGuard to work.

About WatchGuard Technologies, Inc.

WatchGuard® Technologies, Inc. is a global leader in network security, endpoint security, secure Wi-Fi, multifactor authentication, and network intelligence. The company’s awardwinning products and services are trusted around the world by more than18,000 security resellers and service providers to protect more than 250,000 customers.

WatchGuard’s mission is to make enterprise-grade security accessible to companies of all types and sizes through simplicity, making WatchGuard an ideal solution for midmarket businesses and distributed enterprises. The company is headquartered in Seattle, Washington, with offices throughout North America, Europe, Asia Pacific, and Latin America.


WatchGuard AP330


WatchGuard AP330

Specifications:

Front

AP330 Front

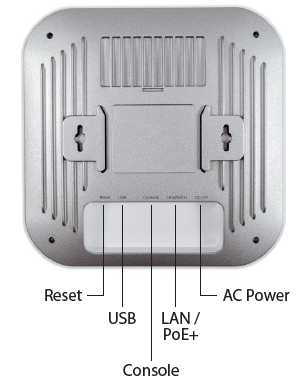

Back

AP330 Bottom
AP330 Specifications
Physical Specifications
Property Specification
Physical Dimensions 205 mm x 205 mm x 33.2 mm
Weight 850 g (1.87 lb)
Operating Temperature 0˚C to 40˚C (32˚F to 104˚F)
Storage Temperature -20˚C to 65˚C (-4˚F to 149˚F)
Humidity 5% to 95% non-condensing
Power Consumption 15.9 W (max) / 11.65 W (avg)
Processor RAM Qualcomm® Cypress IPQ6010-0 Quad-core A53 @1.6 GHz with
1 GB RAM and 256 MB Flash
Port Description Connector Type Speed/Protocol
Power 12V DC/802.3at (PoE+) 3.5 mm overall diameter/ 1.35 mm center pin/hole N/A
Reset Reset to factory default settings Pin hole push button Hold down and power cycle the device to reset
Console Console port for serial connection to the access point RJ-45 N/A
LAN / PoE+ Multigig Ethernet port used to connect to the wired LAN and communicate with WatchGuard Cloud. This port can also be used to power the device using the 802.3at (PoE+) standard RJ-45 1/2.5 Gbps Gigabit Ethernet 802.3at Class 4 PoE+
Operational Specifications
Reset Pinhole push button
Input Power 12V DC/1.5A (3.5 mm overall diameter/1.35 mm center pin/hole)/802.3at (PoE+)
Number of Radios 3 Wi-Fi Radios: One 2.4 GHz and 5 GHz radio each for simultaneous dual band client access. A third dual-band radio dedicated to non-access smart scanning; WIPS, RF optimization, remote troubleshooting, and network assurance functions.
MIMO 2x2 for 2.4/5 GHz Radios
Number of Spatial Streams 2 for 2.4/5 GHz Radios
RF Transmit Power 20 dBm per radio chain (max); Actual power for Tx will depend on Country Regulatory Domain
Simultaneous MU-MIMO Clients Two 1x1 MU-MIMO clients
Users in a MU-MIMO group with a 2x2 client 1
Bandwidth Agility Yes
Dynamic Frequency Selection Supported in compliance to all latest amendments from FCC, CE, IC, CB, TELEC, KCC regarding certifications.
Wi-Fi Specifications – Frequency, Modulation, and Data Rates
IEEE 802.11b/g/n/ax
Frequency Band Scanning Transmission
All regions USA & Canada
(FCC/IC)
Europe
(ETSI)
2400 ~ 2483.5 MHz 2400 ~ 2473.5 MHz 2400 ~ 2483.5 MHz
Modulation Type DSSS, OFDM, OFDMA
Peak Data Rates Up to 574 Mbps (MCS 0-15)
Maximum Transmit Power 20 dBm
Antenna Integrated modular high efficiency PIFA antenna x4 (x2 per band)
IEEE 802.11a/n/ac
Frequency Band Scanning Transmission
All regions USA & Canada
(FCC/IC)
Europe
(ETSI)
4.92 ~ 5.08 GHz
5.15 ~ 5.25 GHz
5.25 ~ 5.35 GHz
5.47~ 5.725 GHz
5.725~ 5.825 GHz
5.15 ~ 5.25 GHz
5.25 ~ 5.35 GHz
5.725~ 5.825 GHz
5.15 ~ 5.25 GHz
5.25 ~ 5.35 GHz
5.47~ 5.725 GHz
Dynamic Frequency Selection DFS and DFS2
Modulation Type OFDM, ODFMA
Peak Data Rates Up to 1201 Mbps (MCS <0-15>)
Antenna Integrated modular high efficiency PIFA antenna x4 (x2 per band)
Maximum Transmit Power 21 dBm
Physical Specifications
Antenna Internal PIFA
2x2.4 GHz (2.5 dBi peak gain)
2x5 GHz (3.5 dBi peak gain)
2x2 dual band third radio (non-access)
Ethernet Ports One 2.5 Gigabit Ethernet port with RJ45 connector type
This port can also be used to power the device using the 802.3at (PoE+)

Product Comparison:

WatchGuard Access Point Models

AP125 AP225W AP325 AP327X AP330
Recommended Use Case

AP125

Lower-density high performance ideal for small schools, distributed remote offices, and small meeting rooms

AP225W

Medium-density high performance ideal for multi-dwelling units (MDU) structures such as dorm rooms, hotels, assisted living, and military housing units.

AP325

Medlum-density high performance including K-12 schools, SMBs, restaurants

AP327X

Medium-density high performance IP-67 rated rugged outdoor including school campuses, RV parks, manufacturing yards, warehouses

AP330

All-purpose Wi-Fi 6 access point and is the ideal choice for mid-density indoor environments
Radios & Streams 2x2:2 MU-MIMO Wave 2 2x2:2 MU-MIMO Wave 2 3rd WIPS Radio 2x2:2 MU-MIMO Wave 2 3rd WIPS Radio 2x2:2 MU-MIMO Wave 2 3 Wi-Fi Radios
Deployment Indoor Indoor Indoor Outdoor Indoor
Number of Antennas 4 internal 4 internal 6 internal 4 N-Type External Connectors 2x2.4 GHz (2.5 dBi peak gain) 2x5 GHz (3.5 dBi peak gain) 2x2 dual band third radio (non-access)
Maximum Data Rate 867 Mbps/300 Mbps 867 Mbps / 400 Mbps 867 Mbps/300 Mbps 867 Mbps/400 Mbps Up to 574 Mbps (MCS 0-15)
Ports 2x Gbe 3x Gbe 2x Gbe 2x Gbe 2x Gbe
Power over Ethernet (PoE) 802.3af (PoE) 802.3at (POE+) 802.3at (PoE+) 802.3at (PoE+) 802.3at (PoE+)
Product Dimensions 5.83"x 5.83"x 1.29" (148 x 148 x 33 mm) 7.3"x 4.9" x 1" (186.4) 123.9x 25.5mm) 7.72"x 7.72"x 1.69" (196x 196 x 43 mm) 8.42"x 8.42"x 2.66" (213.9 x 213.9 X 67.5 mm) 205 mm x 205 mm x 33.2 mm

Documentation:

Download the WatchGuard AP330 Access Point Datasheet (PDF).
